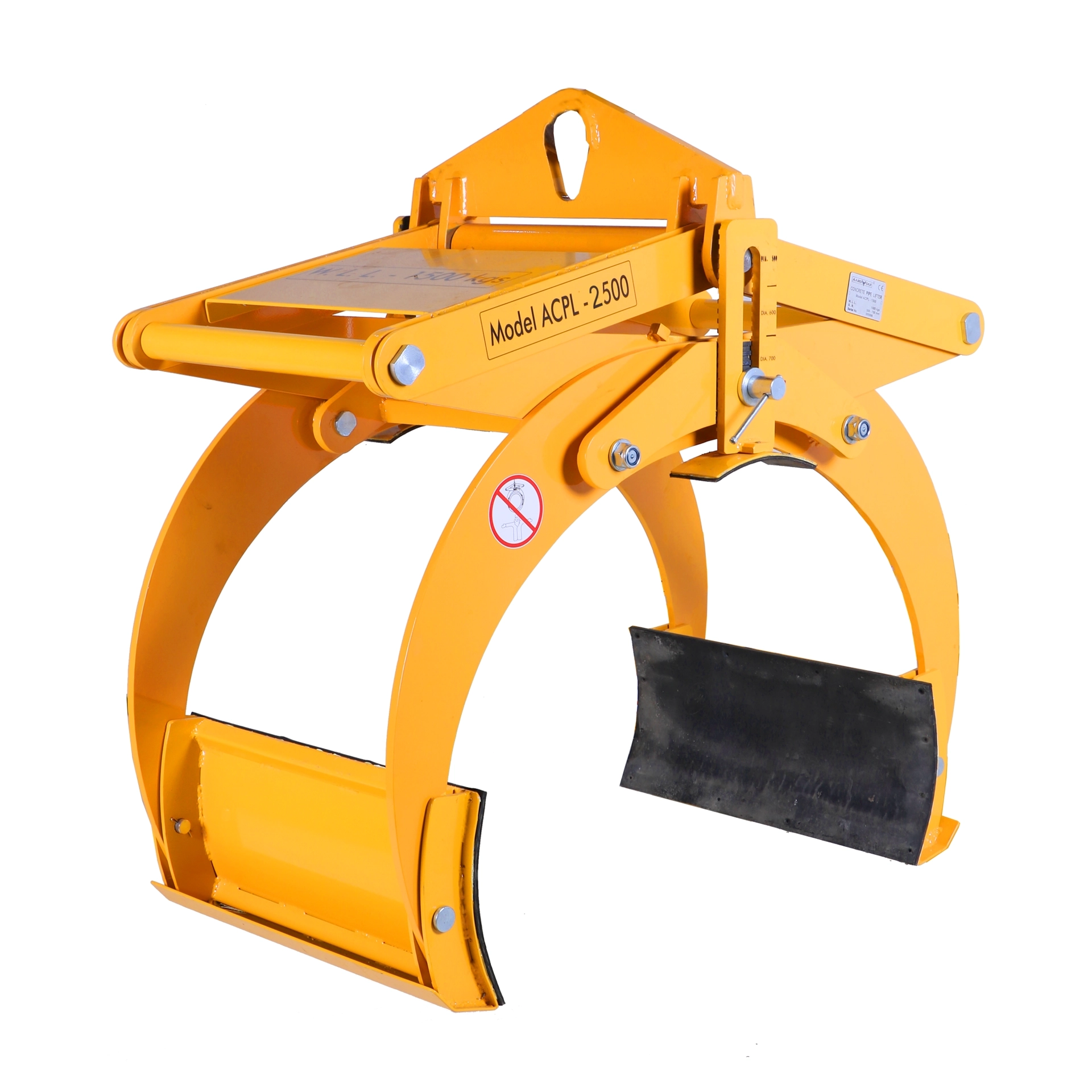

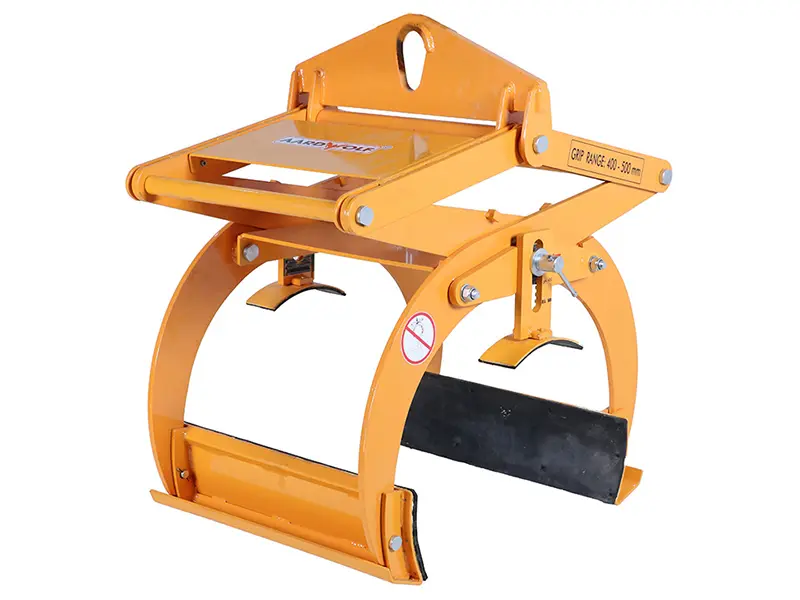

Concrete Pipe Lifter ACPL2500

Mechanical Pipe Lifting Clamp for Safe Concrete Pipe Installation

The Aardwolf Concrete Pipe Lifter ACPL750 is a heavy-duty mechanical lifting clamp engineered for the safe handling, transportation, and installation of precast concrete pipes. Designed for attachment to excavators and cranes, the ACPL750 enables operators to lift and position concrete pipes quickly, accurately, and safely without requiring hydraulic power or manual assistance.

Purpose-built for modern civil construction projects, the ACPL750 increases installation speed while reducing labour costs and improving job site safety. Whether installing stormwater drains, sewer systems, irrigation networks, or utility infrastructure, this concrete pipe lifting clamp provides dependable performance in demanding construction environments.

Designed for Professional Pipeline Installation

Installing concrete pipes has traditionally required several workers using chains, slings, and manual guidance within trenches. This method is labour intensive, time consuming, and exposes workers to unnecessary hazards.  The ACPL750 changes this process completely.

Using an intelligent mechanical locking mechanism, the lifter automatically grips the outside diameter of the pipe during lifting and releases it automatically when lowered into position. The excavator or crane operator can complete the entire lifting cycle without leaving the machine, eliminating the need for workers to enter hazardous trench environments during installation.

The result is a faster, safer, and more efficient pipe installation process.

Why Choose the Aardwolf Concrete Pipe Lifter?

Aardwolf has earned an international reputation for manufacturing innovative material handling equipment used by contractors in more than 90 countries. Every product is engineered to improve safety, increase productivity, and reduce operating costs.

The ACPL750 continues this tradition by providing contractors with a robust mechanical lifting solution that requires virtually no maintenance while delivering years of reliable service.

Unlike hydraulic lifting attachments, the ACPL750 operates entirely mechanically, eliminating hydraulic hoses, valves, cylinders, and the associated maintenance costs.

Key Features

• Fully automatic locking and unlocking mechanism
• Mechanical operation with no hydraulic power required
• Direct attachment to excavators and cranes
• Narrow body design for confined trench installation
• Heavy-duty steel construction
• Replaceable vulcanised rubber contact pads
• Durable powder-coated finish for corrosion resistance
• Fast installation cycle
• Minimal maintenance
• Designed for continuous professional use

Benefits for Contractors

• Improve Job Site Safety: The automatic locking system significantly reduces the need for personnel working close to suspended loads or inside trenches. Operators remain inside the excavator or crane throughout the lifting operation, helping improve compliance with modern construction safety practices.
• Reduce Labour Costs: Traditional pipe installation often requires multiple workers to attach and remove lifting slings. The ACPL750 allows one operator to complete the lifting cycle without manual intervention, reducing labour requirements and increasing productivity.
• Increase Installation Speed: Automatic gripping and release reduce the time required for every pipe installation.  Contractors can install more pipe sections each day while maintaining precise placement accuracy.
• Lower Operating Costs: With no hydraulic components, the ACPL750 requires very little routine maintenance.  Fewer moving parts translate into reduced downtime and lower lifetime ownership costs.

Typical Applications

The ACPL750 is ideal for lifting and installing:

• Stormwater drainage pipes
• Sewer pipes
• Utility conduits
• Water supply pipelines
• Irrigation systems
• Culvert installations
• Municipal infrastructure
• Road construction drainage
• Civil engineering projects
• Precast concrete products

Industries Served

The ACPL750 is widely used by:

• Civil construction contractors
• Local government authorities
• Water authorities
• Utility installation contractors
• Drainage specialists
• Infrastructure contractors
• Pipe manufacturers
• Equipment hire companies

How the ACPL750 Works

The Concrete Pipe Lifter attaches directly to an excavator or crane hook. As the operator lowers the lifter over the concrete pipe, the mechanical jaws automatically open.  Once lifting begins, the jaws securely grip the outside diameter of the pipe.

During transportation, the pipe remains safely clamped while vulcanised rubber pads protect the concrete surface from damage. When the pipe reaches its installation location, lowering the attachment automatically releases the pipe, allowing immediate repositioning for the next lifting cycle.  This simple yet highly effective mechanism enables continuous lifting without additional hydraulic systems or manual intervention.

Built for Harsh Construction Environments

Every component has been designed for heavy-duty operation. The welded steel frame provides exceptional structural strength while the powder-coated finish protects against corrosion, moisture, and harsh weather conditions.

Replaceable rubber contact pads prevent chipping or surface damage while maintaining excellent gripping performance across a wide range of pipe diameters.

Safety Features

Safety is one of the primary design objectives of the ACPL750.

Key safety features include:

• Automatic mechanical locking
• Secure pipe gripping
• Controlled load release
• Stable load positioning
• Rubber-lined contact surfaces
• Reduced manual handling
• Improved operator visibility
• No workers required beneath suspended loads

Maintenance

Because the ACPL750 contains no hydraulic cylinders or electrical components, maintenance requirements are minimal.

Routine inspection should include:

• Checking pivot points
• Inspecting rubber pads
• Examining lifting points
• Verifying locking mechanism operation
• Cleaning debris after use

Regular inspection helps maximise service life while maintaining safe operation.

Choosing the Correct Model

The ACPL750 is designed for contractors regularly handling smaller diameter concrete pipes.

For larger pipe diameters or heavier loads, Aardwolf also offers:

• ACPL1500
• ACPL2500

Each model uses the same reliable mechanical operating principle while providing higher lifting capacities for larger infrastructure projects.

Frequently Asked Questions

Does the ACPL750 require hydraulic connections?

No. The lifter operates entirely through a mechanical locking mechanism.

Can it be used with an excavator?

Yes. It is designed for use with excavators or cranes.

Will it damage concrete pipes?

No. Vulcanised rubber pads protect pipe surfaces while maintaining a secure grip.

Is it suitable for trench installation?

Yes. The narrow profile is specifically designed for placing pipes in confined trench environments.

What maintenance is required?

Routine inspection and cleaning are generally all that is required.

-----------------------------------------------------------

Increase safety, reduce labour costs, and accelerate your pipeline installation projects with the Aardwolf Concrete Pipe Lifter ACPL750.

Contact Tool Range today to discuss your lifting requirements or request a quotation from our material handling specialists.
