Hoists - PA500
General
The Hitachi 1SN1ST electric chain hoist and the PA500 wire rope hoist are designed to meet a wide range of lifting needs in workshops, warehouses, and construction sites.
Both models provide dependable performance, with the PA500 offering a compact, economical solution for light-duty lifting, while the Hitachi hoist delivers premium, dual-speed operation and long-lasting durability for demanding industrial applications.
Features

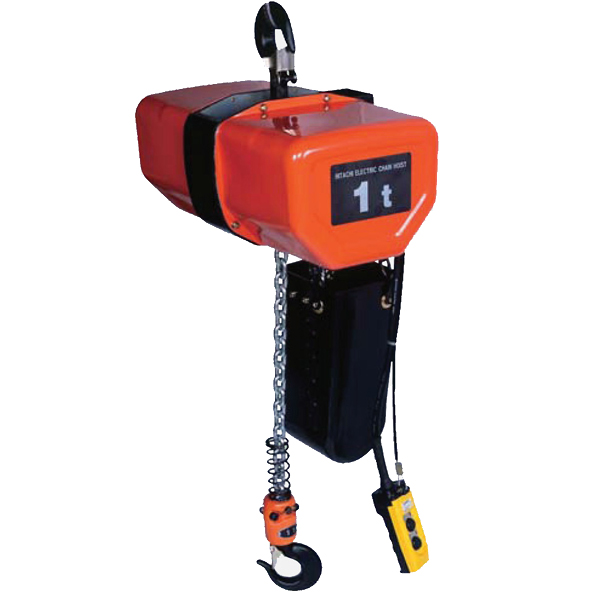

HITACHI1SN1ST
- Dual-speed control for both fast and precise lifting.
- High-strength load chain, rotatable hook with safety latch.
- 24V pendant control with emergency stop for operator safety.
- Upper & lower limit switches protect against over-travel.
- Reverse phase relay prevents wiring errors.
- Certified to CE & UKCA standards, IP54 protection class.

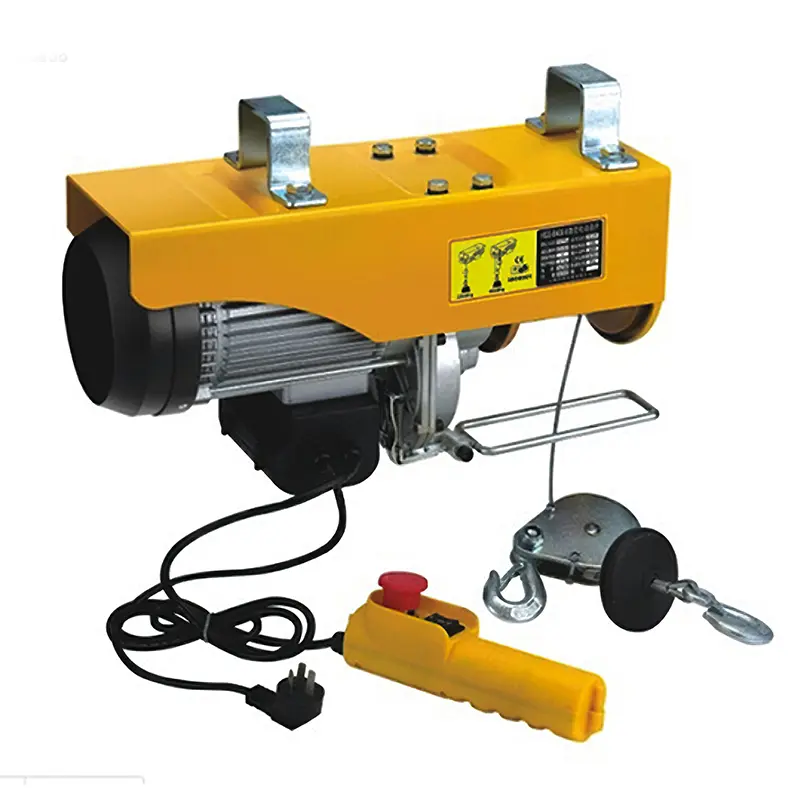

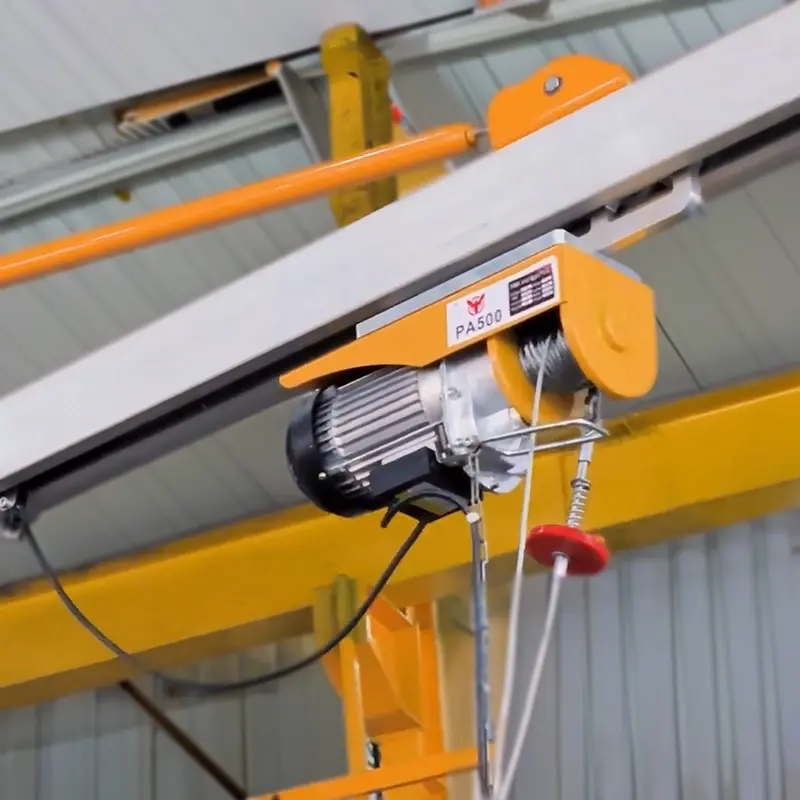

PA500
- Dual-hook system for flexible lifting capacities (250 / 500 kg).
- Operates on 220V single-phase, suitable for workshops and household power supply.
- Emergency stop switch for safe operation.
- Compact and lightweight design, easy to install and transport.
- Duty cycle S3 – 25%, suitable for intermittent use.
Specifications
PA500 | Metric |
Load Capacity (Single/Double) | 250 / 500 kg |
Lifting height (Single/Double) | 12 m / 6 m |
Lifting speed (Single/Double) | 10 m/min – 5 m/min |
Cable Diameter | 4.8 mm |
Cable Length (Single/Double) | 12 m / 6 m |
Voltage | 220V – Single phase, 50Hz |
Power | 1000W |
Weight | 16.5 kg |
Duty cycle | S3 – 25% (max 2.5 min per 10 min cycle) |
