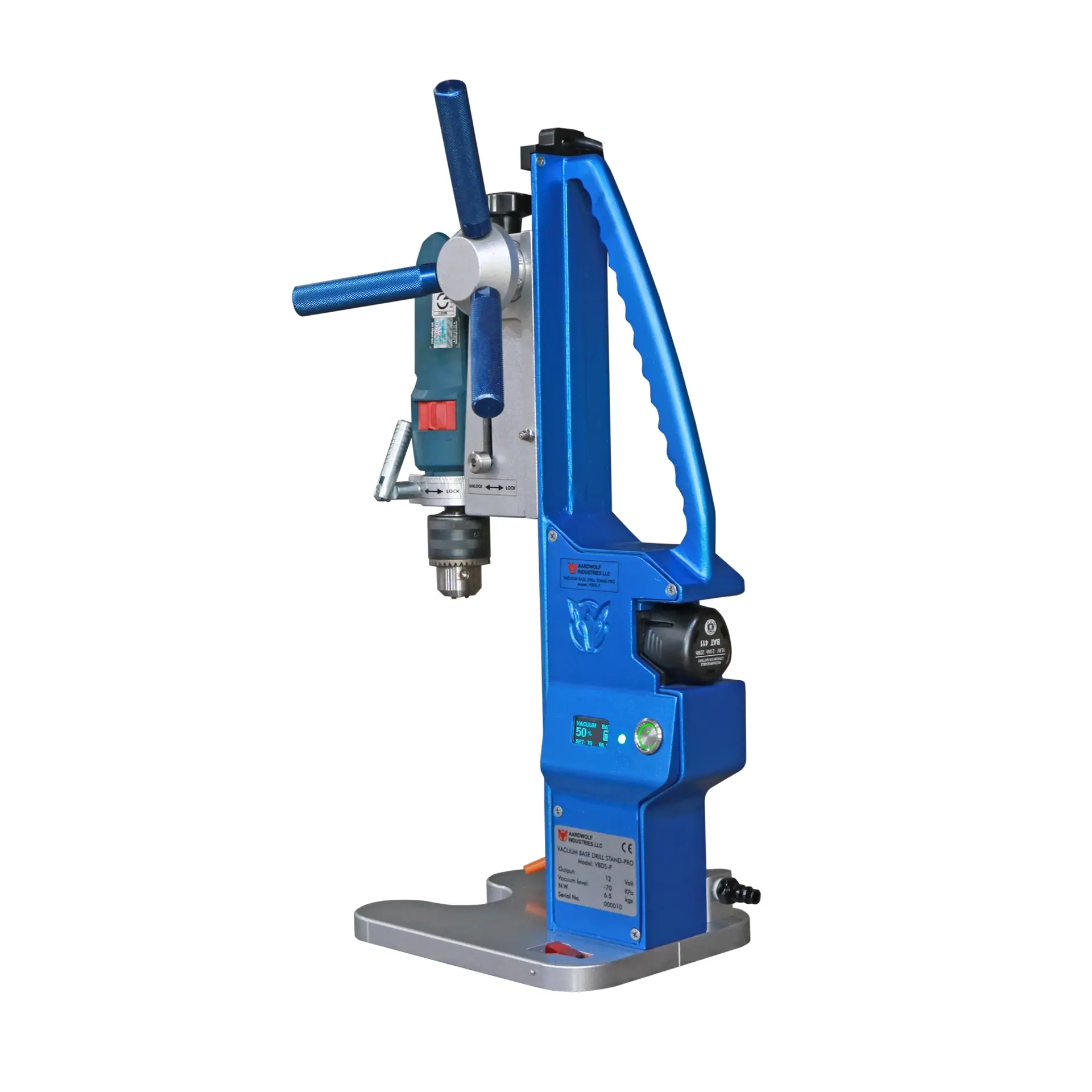

Vacuum Base Drill Stand – Pro - VBDS-P
General

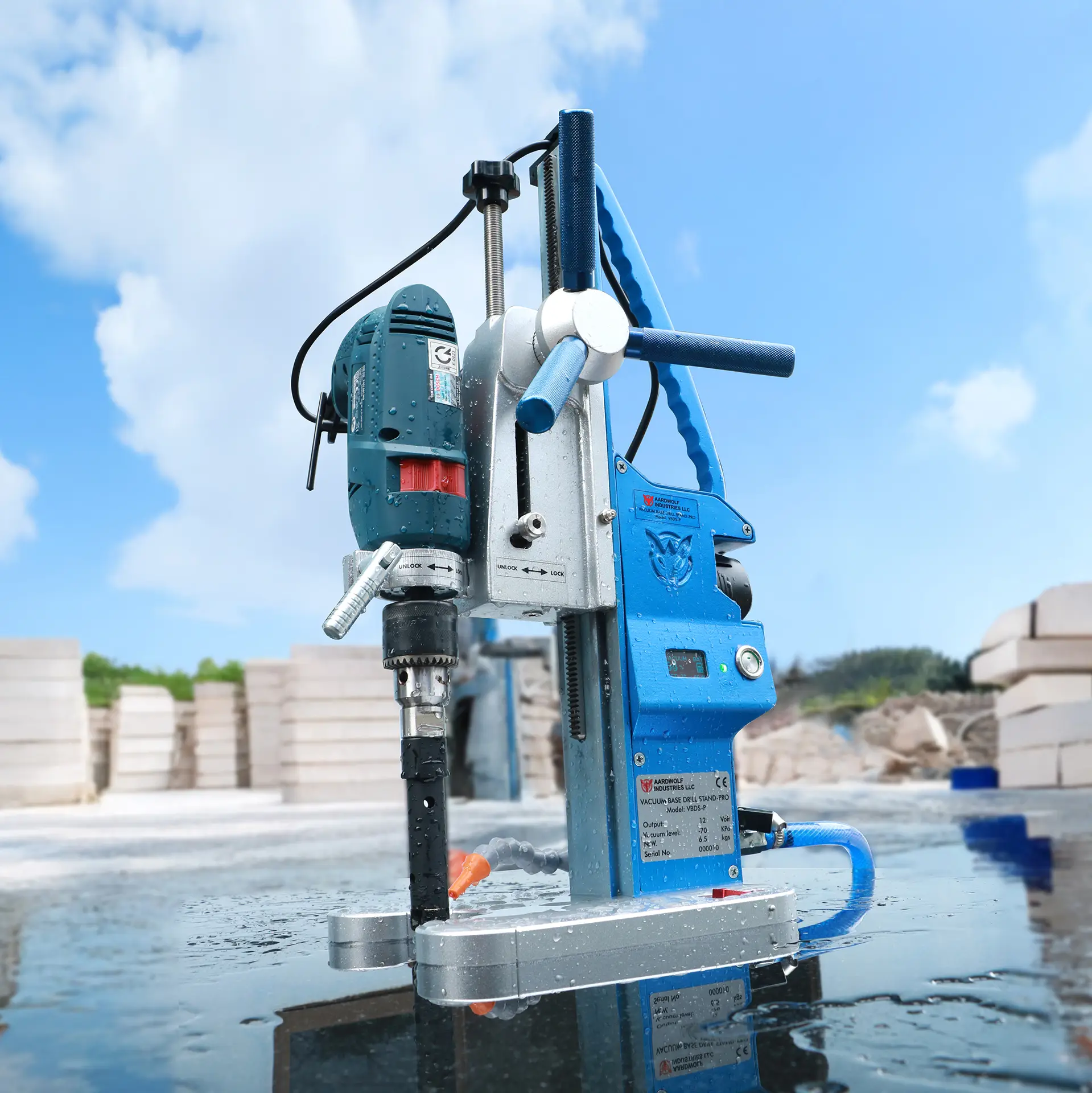

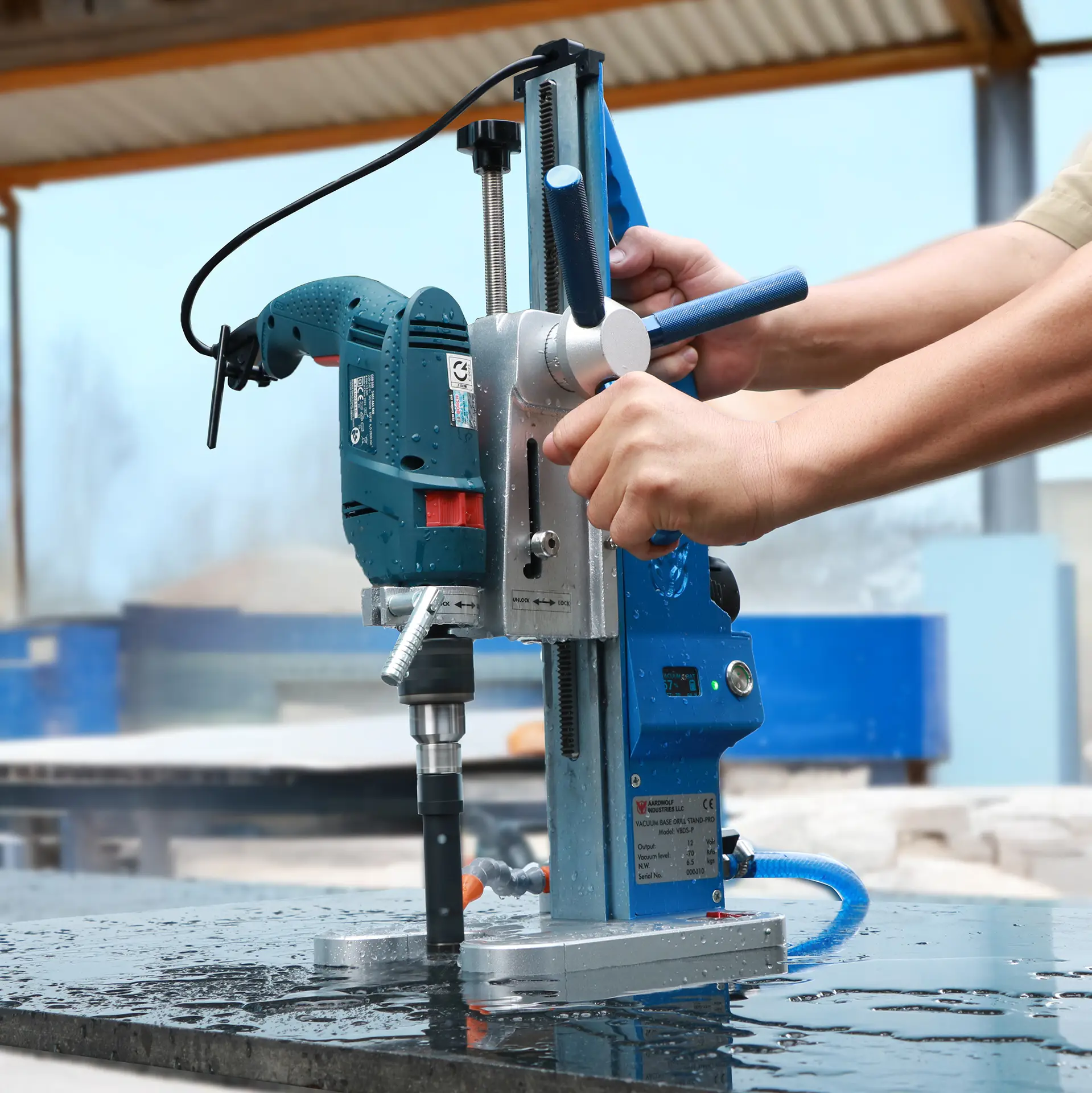

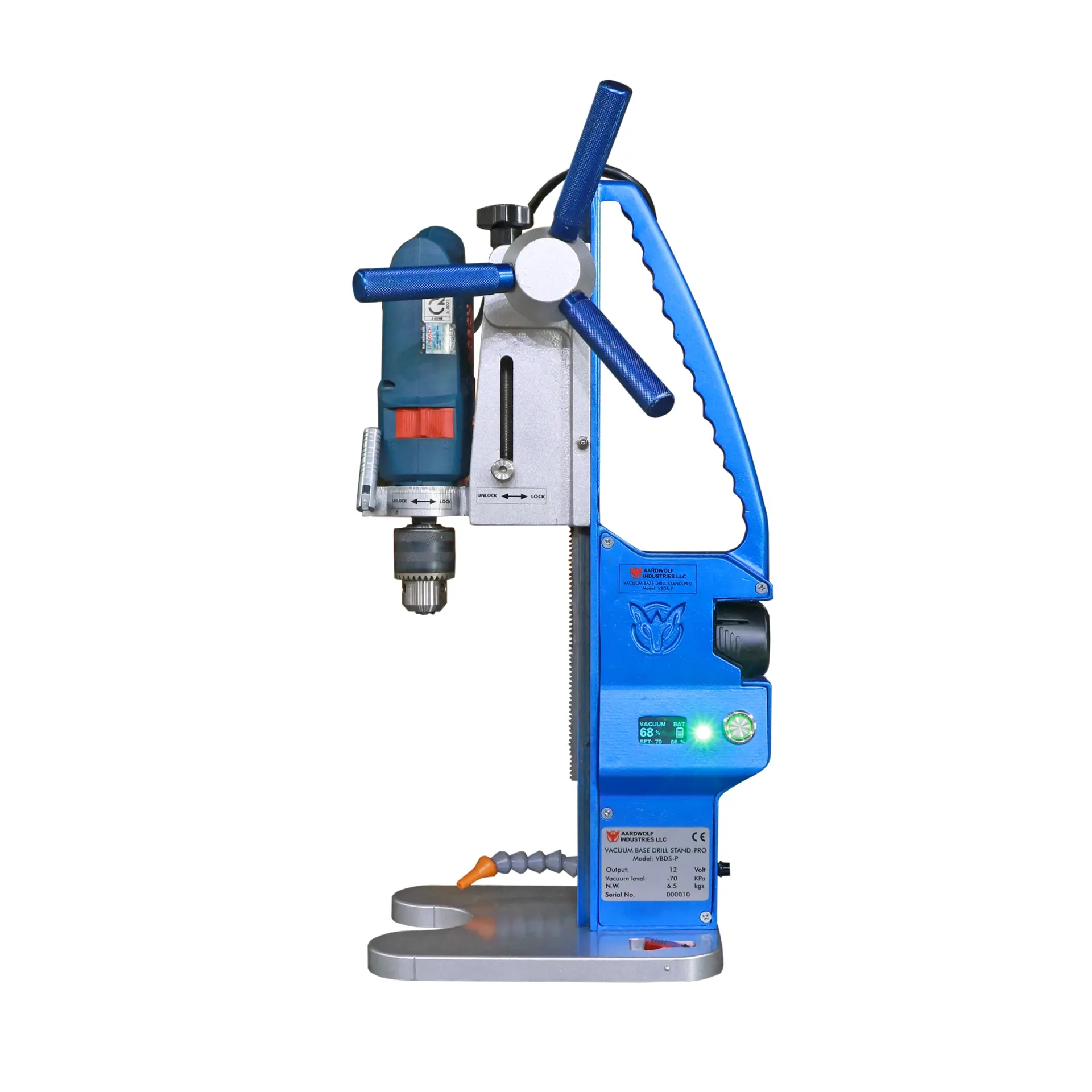

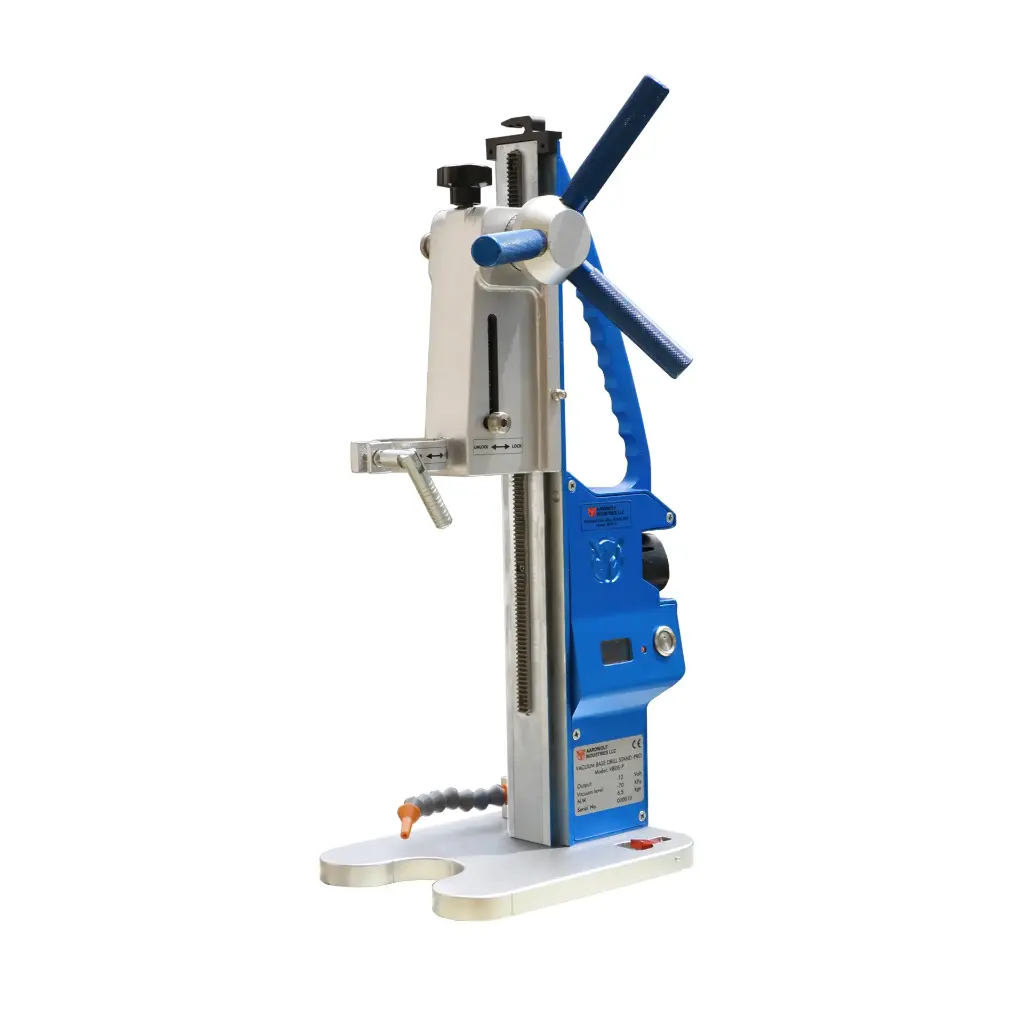

The Vacuum Base Drill Stand – Pro (VBDS-P) is a vacuum-powered drill stand designed to securely hold drills in place and support precise drilling operations on a variety of flat surfaces.
Its high-performance vacuum pump automatically maintains stable pressure, ensuring a firm grip throughout the drilling process.
The dual coarse–fine adjustment system allows for accurate positioning and depth control down to the millimeter. Equipped with an integrated water connection for cooling, dual safety locks, a safety valve for repetitive drilling and quick vacuum release, and an anti-vibration mechanism, the VBDS-P delivers smooth, safe, and stable operation.
Powered by a convenient battery system, it’s portable, easy to maintain, and ideal for diverse work environments that demand mobility and precision.
Note: Drill not included.
Features
- High-performance vacuum pump – Stops at -70 kPa, restarts at 50 kPa, maintaining consistent holding pressure.
- Return spring – Automatically returns the drill head to its starting position after drilling for faster and safer operation.

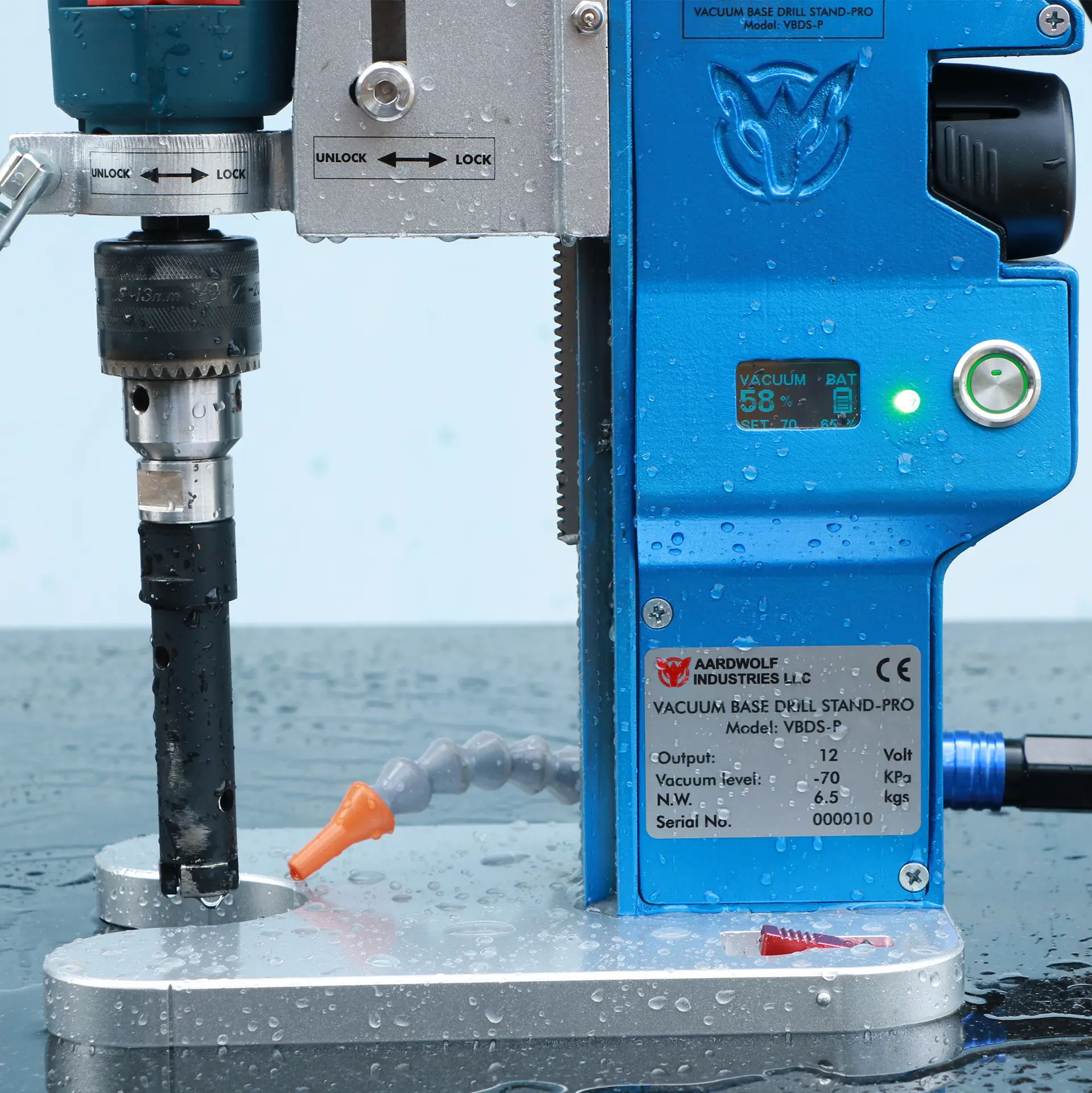

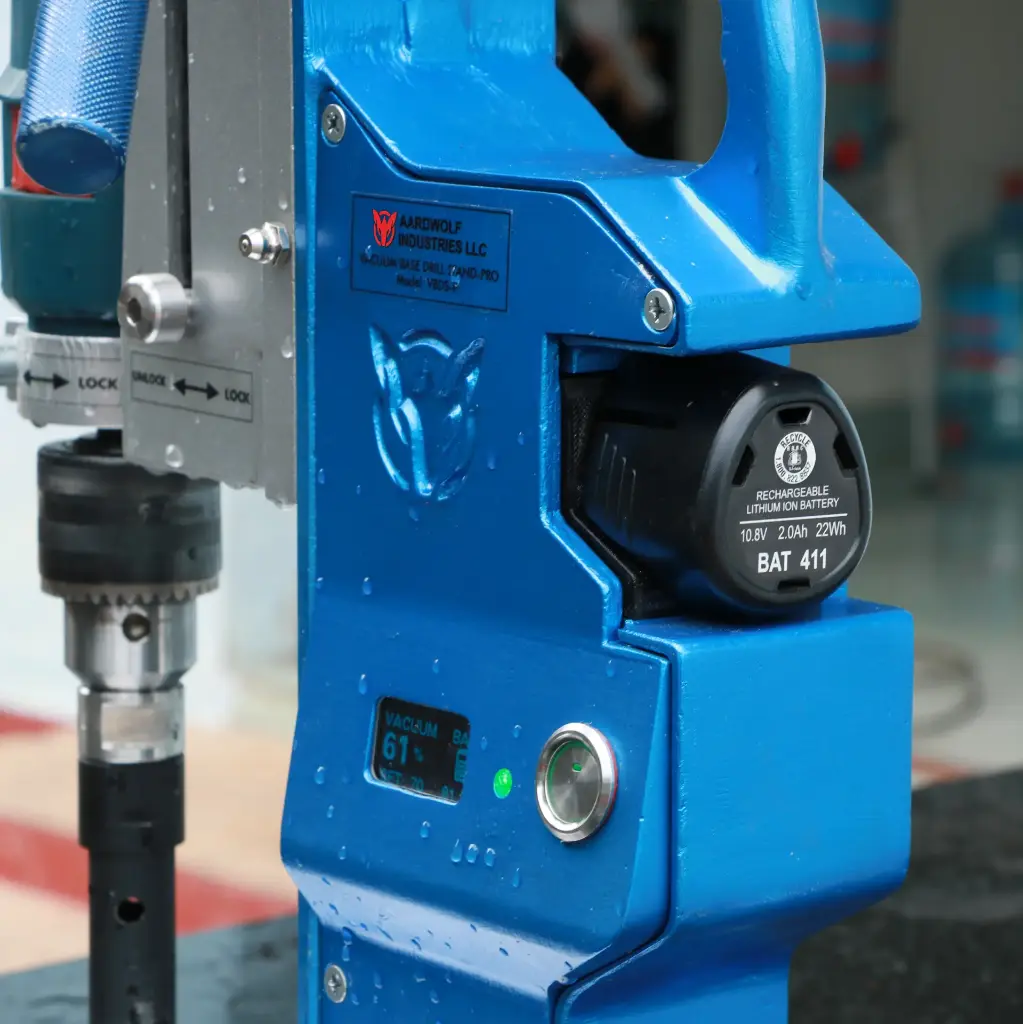

- Digital display – Monitors vacuum pressure and battery status.

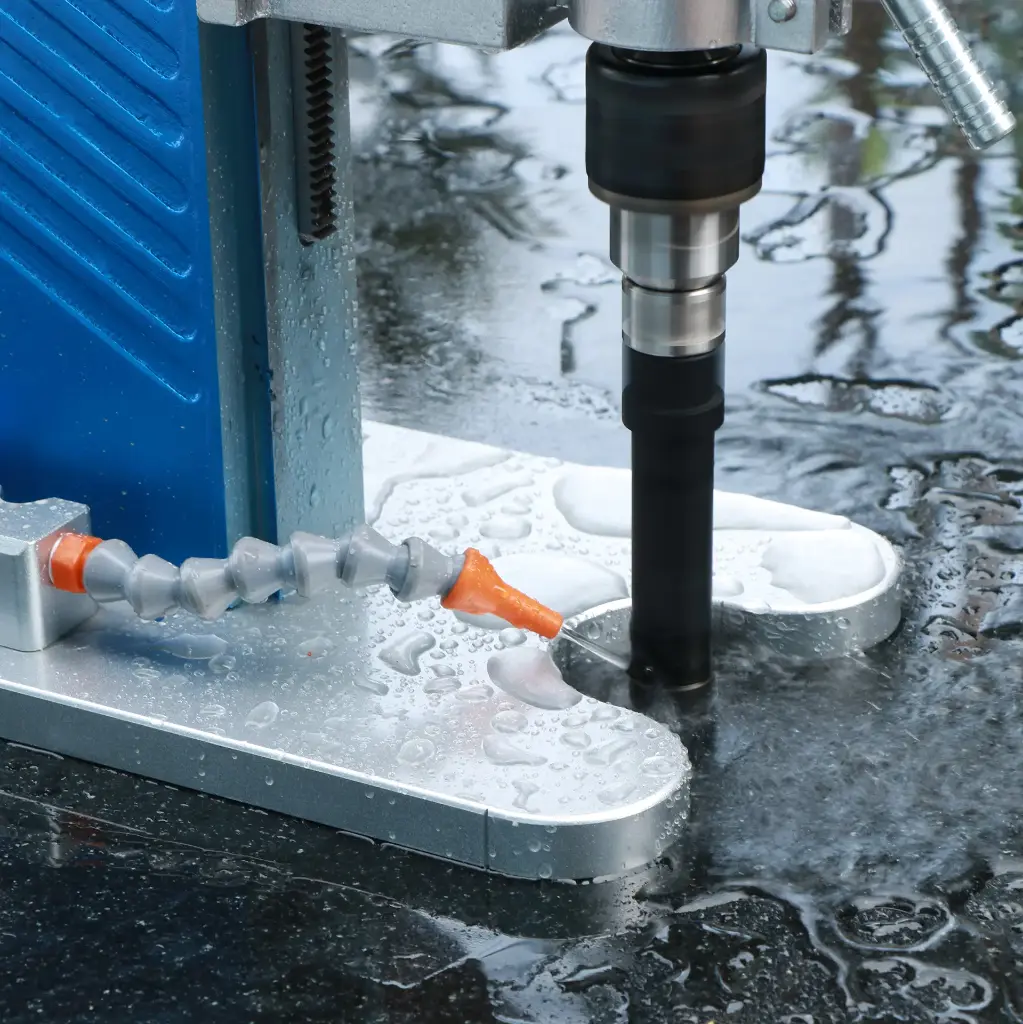

- Integrated water connection – Cools the drill bit and protects work surfaces.
- Dual safety locks – Secures both the drill collar and height position.
- Coarse & fine adjustments – Height adjustment knob and fine depth control handle with measurement scale.
- Safety valve – Holds drilling position for repetitive work and quickly releases vacuum after drilling.
- Anti-vibration screw & grease fitting – Reduce vibration and supports periodic maintenance.
- Vacuum base – Firmly attaches to both smooth and textured surfaces.
Specifications

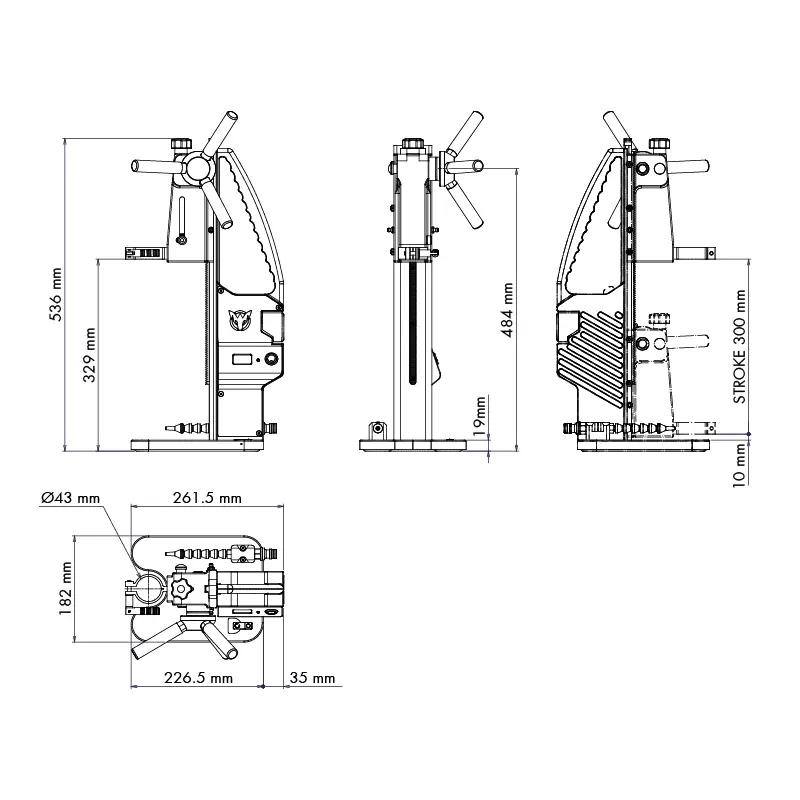

| VBDS-P | Metric |
|---|---|
| Drilling diameter | 60 mm |
| Working height | 305 mm |
| Drill collar diameter | 43 mm |
| Rack length | 400 mm |
| Vacuum base size | 180 × 220 mm |
| Net weight | 6.5 kg |
| Vacuum level | -70 kPa |
| Battery | 12 V – 2.0 Ah (Rechargeable Lithium-Ion) |
Vacuum Base Drill Stand – Pro

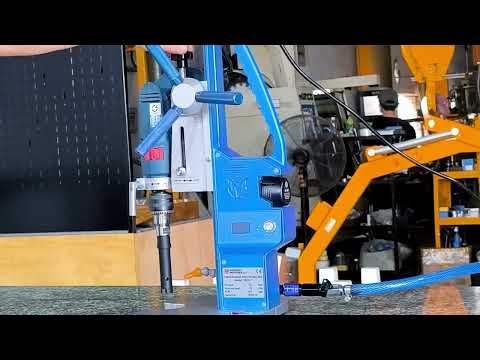

Watch our comprehensive product demonstration video showing how to use Vacuum Base Drill Stand – Pro . Learn about key features, benefits, and setup instructions.
