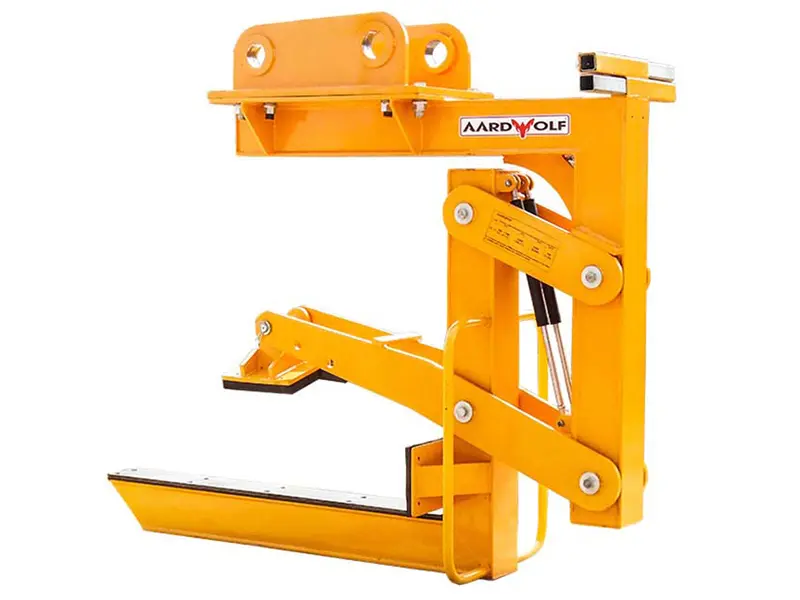

Pipe Handling Attachment PHA4000 PHA4000

Heavy-Duty Excavator Attachment for Safe and Efficient Concrete Pipe Installation

The Aardwolf Pipe Handling Attachment PHA4000 is a high-capacity, fully mechanical excavator attachment engineered for the safe lifting, transport, positioning, and installation of precast concrete pipes. Designed specifically for professional civil contractors and infrastructure projects, the PHA4000 eliminates the need for chains, slings, hydraulic gripping systems, and manual handling, allowing a single excavator operator to complete pipe installation safely and efficiently. Its automatic clamping mechanism securely grips concrete pipes with diameters from 300 mm to 1,200 mm, while its 4,000 kg working load limit makes it suitable for some of the most demanding underground utility and drainage projects.

Unlike conventional pipe lifting methods that require several workers to attach slings and guide loads into position, the PHA4000 enables one operator to complete the entire lifting cycle from inside the excavator cab. This significantly improves safety, reduces labour costs, and increases installation productivity.

Whether you are installing stormwater systems, sewer pipelines, culverts, irrigation networks, or municipal infrastructure, the Aardwolf PHA4000 delivers the reliability and performance required by today's construction industry.

Designed for High-Productivity Pipeline Installation

Modern pipeline construction demands equipment that is fast, reliable, and above all, safe.

Traditional lifting methods often involve:

• Multiple workers
• Chains or slings
• Manual positioning
• Workers inside trenches
• Slow installation cycles

These methods increase labour costs while exposing workers to unnecessary hazards. The Aardwolf Pipe Handling Attachment PHA4000 has been engineered to transform this process. Its fully automatic mechanical clamping system allows the excavator operator to insert the attachment into the concrete pipe, securely grip the pipe, transport it, accurately position it, and release it—all without anyone entering the trench or manually attaching lifting equipment.

The result is faster installation, improved safety, and significantly higher productivity.

Why Choose the Aardwolf PHA4000?

The PHA4000 has been designed specifically for contractors installing large volumes of precast concrete pipe.  Unlike many hydraulic pipe handling systems, the PHA4000 operates entirely through a mechanical clamping mechanism.

This provides numerous advantages:

• No hydraulic hoses
• No hydraulic cylinders
• No external hydraulic connections
• No oil leaks
• Lower maintenance costs
• Greater reliability
• Faster setup
• Simpler operation

Its mechanical simplicity makes it an ideal solution for contractors working in remote areas where equipment reliability is essential.

Key Features

• Fully automatic pipe handling system
• Mechanical clamping mechanism
• No hydraulic power required
• Designed specifically for excavators
• 4,000 kg Working Load Limit
• Pipe diameter range from 300 mm to 1,200 mm
• Suitable for pipe lengths up to 2,500 mm
• Heavy-duty welded steel construction
• Replaceable wear components
• Durable powder-coated finish
• Compact profile for confined trench installation
• One-person operation
• Low maintenance design

Improve Productivity on Every Project

Large infrastructure projects often require hundreds or thousands of concrete pipes to be installed.  Every unnecessary movement increases project costs. The PHA4000 dramatically simplifies pipe installation by allowing the excavator operator to complete every lifting cycle without assistance.

Benefits include:

• Faster installation rates
• Reduced labour costs
• Fewer personnel required
• Less equipment on site
• Reduced idle time
• Improved excavator utilisation
• Lower project costs
• Increased daily production

For contractors working under tight project schedules, these productivity gains can have a significant impact on profitability.

Engineered for Maximum Safety

The greatest advantage of the PHA4000 is improved workplace safety. Traditional lifting methods often require workers to enter trenches while suspended loads are being positioned.  The PHA4000 virtually eliminates this requirement.

Safety benefits include:

• Automatic gripping
• Secure mechanical clamping
• Controlled release
• Reduced manual handling
• Improved operator visibility
• Stable pipe positioning
• Reduced trench exposure
• No workers beneath suspended loads

These features assist contractors in complying with modern occupational health and safety requirements while reducing the likelihood of workplace injuries.

Precision Placement Every Time

Installing concrete pipes accurately is critical.  Incorrect alignment can create:

• Joint leakage
• Installation delays
• Rework
• Pipe damage
• Poor sealing
• Reduced service life

The PHA4000 grips the pipe securely, allowing operators to maintain excellent control throughout the lifting cycle.  This enables accurate placement, even when working inside narrow trenches or restricted excavation areas.  The attachment's narrow profile further improves access where larger lifting equipment cannot operate efficiently.

Typical Applications

The PHA4000 is suitable for installing:

• Reinforced concrete pipes
• Stormwater drainage systems
• Sewer infrastructure
• Water supply pipelines
• Irrigation systems
• Culverts
• Highway drainage
• Airport infrastructure
• Mining infrastructure
• Industrial developments
• Municipal utility projects
• Flood mitigation systems

Industries Served

The Pipe Handling Attachment is widely used by:

• Civil engineering contractors
• Infrastructure developers
• Water authorities
• Municipal councils
• Road construction companies
• Drainage contractors
• Utility installation companies
• Pipe manufacturers
• Mining contractors
• Equipment rental businesses

How the Pipe Handling Attachment Works

The PHA4000 is mounted directly onto an excavator using a quick-change coupling system.  The operator inserts the attachment into the open end of the concrete pipe.  As lifting begins, the internal mechanical clamping mechanism automatically grips the inside of the pipe.  The pipe remains securely held throughout transportation and positioning.  Once the pipe has been lowered into its final installation position, the operator slightly lowers the attachment before withdrawing it from the pipe.

The entire lifting cycle is completed quickly and safely without chains, slings, or manual assistance.

Built for Heavy-Duty Construction

Construction equipment must withstand harsh conditions including:

• Dust
• Mud
• Rain
• Abrasion
• Heavy impacts
• Continuous daily operation

The PHA4000 has been engineered using heavy-duty structural steel designed for years of professional use.  Its industrial powder-coated finish provides outstanding corrosion resistance while replaceable wear components simplify maintenance and extend equipment life.

Low Maintenance Means Lower Ownership Costs

Mechanical equipment is generally easier to maintain than hydraulic systems. The PHA4000 requires only routine inspection and lubrication.

Recommended maintenance includes:

• Inspect locking pins
• Check connecting arms
• Examine rubber squeeze head
• Inspect adaptor bracket
• Check bolts and fasteners
• Lubricate moving pivots
• Remove accumulated dirt
• Replace worn rubber components when required

This simple maintenance schedule helps maximise service life while reducing downtime.

Choosing Between the Aardwolf Pipe Lifting Range

The PHA4000 represents the premium solution for contractors requiring maximum productivity, precision, and lifting capacity.

Frequently Asked Questions

Does the PHA4000 require hydraulic power?

No. The attachment operates entirely through a mechanical clamping mechanism and requires no hydraulic hoses or external power supply.

Can one operator install concrete pipes?

Yes. The PHA4000 has been specifically designed so that one excavator operator can safely complete the lifting and installation process.

What size pipes can it lift?

The attachment is suitable for concrete pipes with internal diameters ranging from 300 mm to 1,200 mm and pipe lengths up to 2,500 mm.

Is it suitable for confined trenches?

Yes. The compact profile allows easy installation in narrow excavation trenches.

Does it use chains or slings?

No. The PHA4000 eliminates the need for chains, slings, and manual lifting accessories.

Is operator training required?

Operators should always read the operating manual and follow local lifting regulations before using the equipment. Regular inspections and safe operating procedures are essential.

How often should the attachment be inspected?

A visual inspection should be carried out before each use, with a comprehensive inspection by a competent person at least every 12 months, or as required by local regulations.

-----------------------------------------------------------

When productivity, safety, and precision matter, the Aardwolf Pipe Handling Attachment PHA4000 is the professional choice. Designed for demanding infrastructure projects, it enables faster installation, lower labour costs, and safer handling of large concrete pipes without hydraulic systems or manual lifting accessories.

Contact Tool Range today to request a quotation or speak with one of our lifting specialists about the best solution for your next pipeline installation project.
