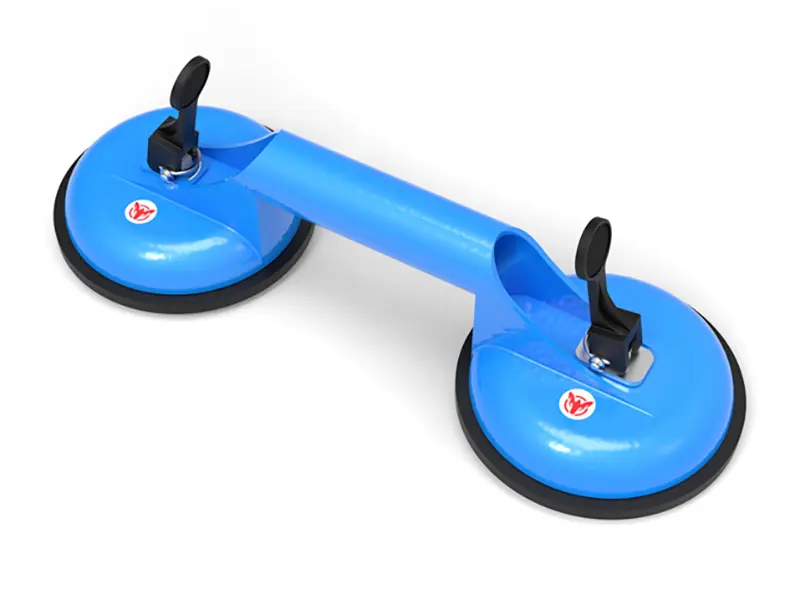

Aardwolf HVC05 double suction cup lifter with two rubber cups and lever locks
Aardwolf HVC05 double suction cup lifter with two rubber cups and lever locks
Aardwolf Suction Cup

Double Suction Cup HVC05

Not Available For Sale

Quantity
Contact for price

Double Suction Cup - HVC05

Overview

The Aardwolf Double Suction Cup Lifter is a practical, manually operated handling tool designed for lifting, carrying and positioning glass panels, mirrors, smooth tiles, polished stone and other suitable non-porous materials.

Equipped with two high-adhesion rubber suction cups and lever-operated vacuum mechanisms, the lifter provides a reliable grip on suitable smooth, clean and dry surfaces.

Designed for glass installers, tile contractors, stone fabricators and construction professionals, the Aardwolf Double Suction Cup helps improve handling efficiency and control during installation and material positioning.

The suction cups undergo regular load and leak testing. The manufacturer reports average test forces approximately twice the stated maximum operating loads, corresponding to a safety factor of 2 under the specified test conditions.

How It Works

The Double Suction Cup operates by creating a pressure difference between the rubber suction pads and the surrounding atmosphere.

Position both suction cups flat against a suitable surface and press the lifter firmly into place. Push back the locking levers to activate the suction mechanism and establish a vacuum seal.

Atmospheric pressure holds the cups against the material, allowing the operator to lift, carry and position the load manually.

Before lifting, check that both cups have formed a secure seal.

Key Features

  • Dual suction cups: Two rubber pads provide two contact points for manual handling.

  • Lever-operated mechanism: Simple manual activation without batteries or external power.

  • High-adhesion rubber pads: Designed to form an effective seal on compatible smooth, non-porous surfaces.

  • Manual handling design: Suitable for lifting, carrying and positioning materials within the rated capacity.

  • Load and leak tested: Regular testing supports product quality and reliability.

  • Versatile applications: Suitable for compatible glass, tiles, polished stone, plastics and other non-porous materials.

Applications and Suitable Materials

The Aardwolf Double Suction Cup can be used for:

  • Glass panels and mirrors during installation or fabrication.

  • Smooth ceramic and porcelain tiles, including suitable large-format tiles.

  • Polished marble, granite and engineered stone with sufficiently non-porous surfaces.

  • Smooth metal sheets and plastic panels where an effective vacuum seal can be maintained.

  • Window installation, glazing, interior fitting and general workshop material handling.

Not all surfaces are suitable. Rough, textured, porous, oily or wet surfaces may prevent the suction pads from forming a reliable seal.

Key Benefits

Improved handling control: Provides a practical gripping point when moving smooth panels and sheets.

Faster positioning: Lever-operated suction cups allow straightforward attachment and removal.

Surface protection: Rubber pads help reduce direct hard-contact damage when correctly used on suitable materials.

Versatile workshop tool: Suitable for several industries, including glazing, tiling, stone fabrication and construction.

No external power required: Operates entirely by hand.

Operating Instructions and Safety Precautions

  1. Inspect both rubber pads, handles and locking levers before use.

  2. Ensure the material surface and suction pads are clean, smooth, dry and free from grease.

  3. Place both suction cups flat against the material.

  4. Push back both levers to establish suction.

  5. Verify the grip before raising the material.

  6. Never exceed the manufacturer's maximum rated load for the relevant direction of pull.

  7. When carrying a vertical panel with the lifting force parallel to its surface, reduce the stated perpendicular-pull capacity by 50%.

  8. Never attach the hand lifter to cranes, hoists, forklifts or other mechanical lifting equipment.

  9. Replace damaged, cracked, hardened or worn suction pads immediately.

  10. Release the levers only after the load is safely supported.

The holding capacity may be reduced by low temperatures, ageing rubber, humidity and unsuitable surface conditions.

Frequently Asked Questions

Q1. Can the Double Suction Cup lift glass panels?

Yes. It is designed for manually handling suitable smooth, clean, dry and non-porous glass panels within its rated load capacity.

Q2. Can it be used on granite and marble?

Yes, provided the stone surface is sufficiently smooth and non-porous to maintain a secure vacuum seal. Rough or porous stone may be unsuitable.

Q3. Is it suitable for large-format porcelain tiles?

It can be used on suitable smooth, non-porous porcelain tiles, subject to the tool's rated capacity and the handling requirements of the tile.

Q4. Does it require electricity or a vacuum pump?

No. The vacuum is generated manually using the locking levers.

Q5. Can it be attached to a crane?

No. This product is intended exclusively for manual handling and must never be used with mechanical lifting equipment.

Q6. How should the rubber suction pads be maintained?

Keep the pads clean and dry. Inspect them before each use and replace any showing cracks, damage, reduced elasticity or loss of holding performance.

Read More Read Less

Specifications

Double Suction Cup HVC05


Metric
Cup diameter122 mm
Working load limitVertical: 50 kg
Horizontal: 100 kg
Net weight0.8 kg
Gross weight1.1 kg
Packaging dimensionsL.315 x W.165 x H.100 mm
