Home A-FRAMES Folding A-Frames
Folding A-Frames
FAF1800
FAF2100
FAF1600
FAF2100

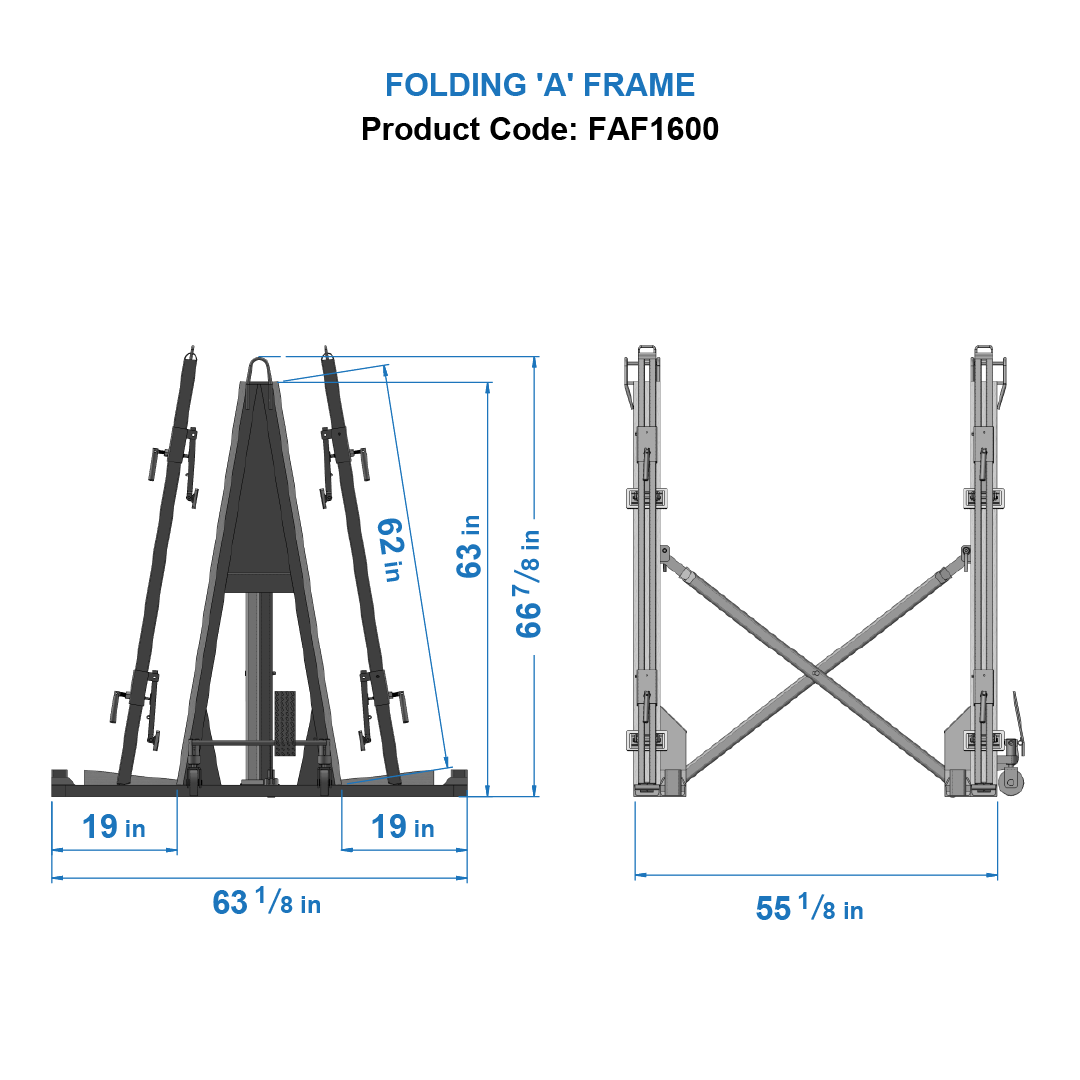

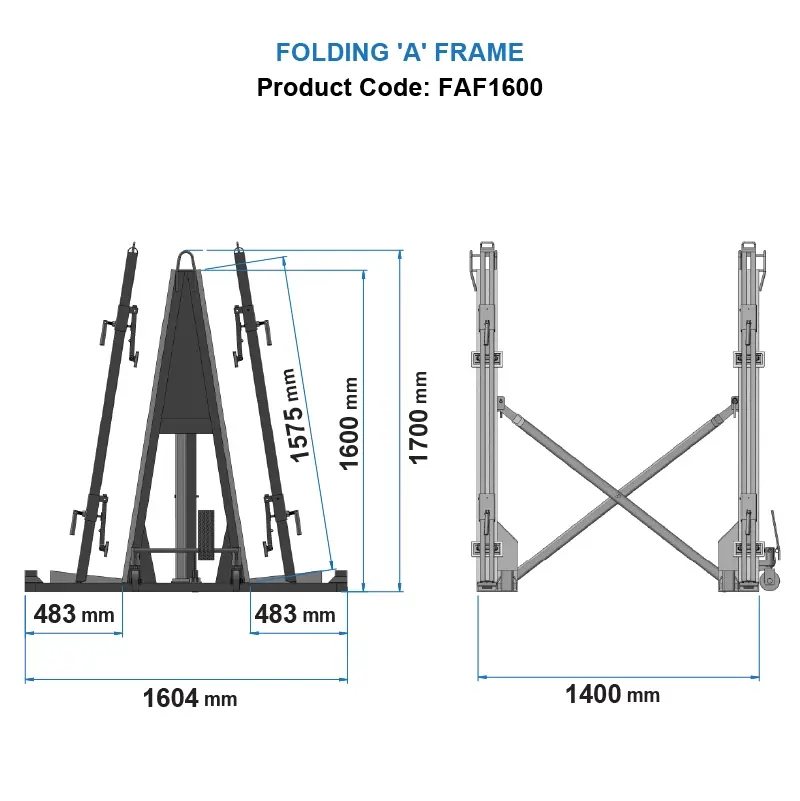

Folding A-Frames FAF1600 (Dimension)

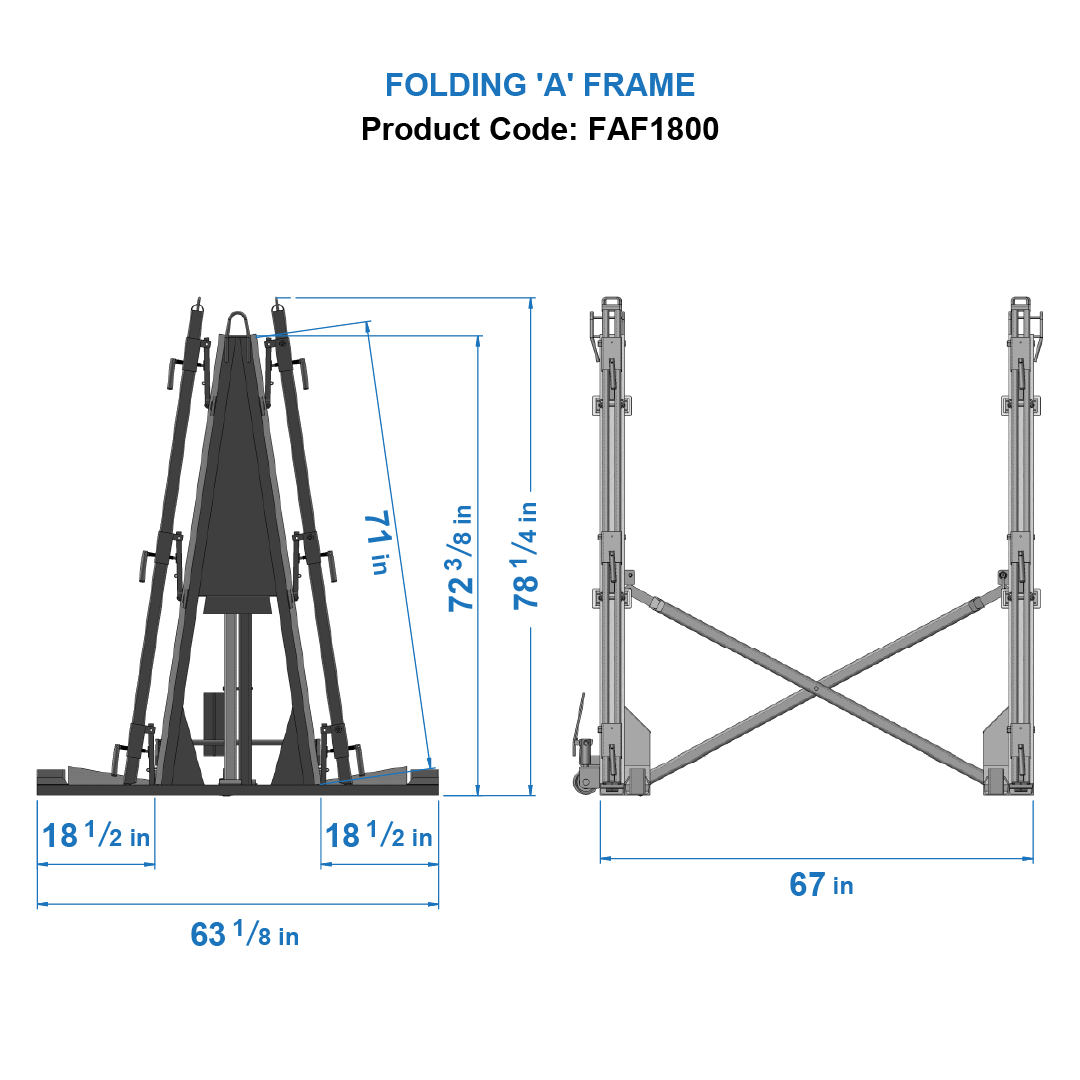

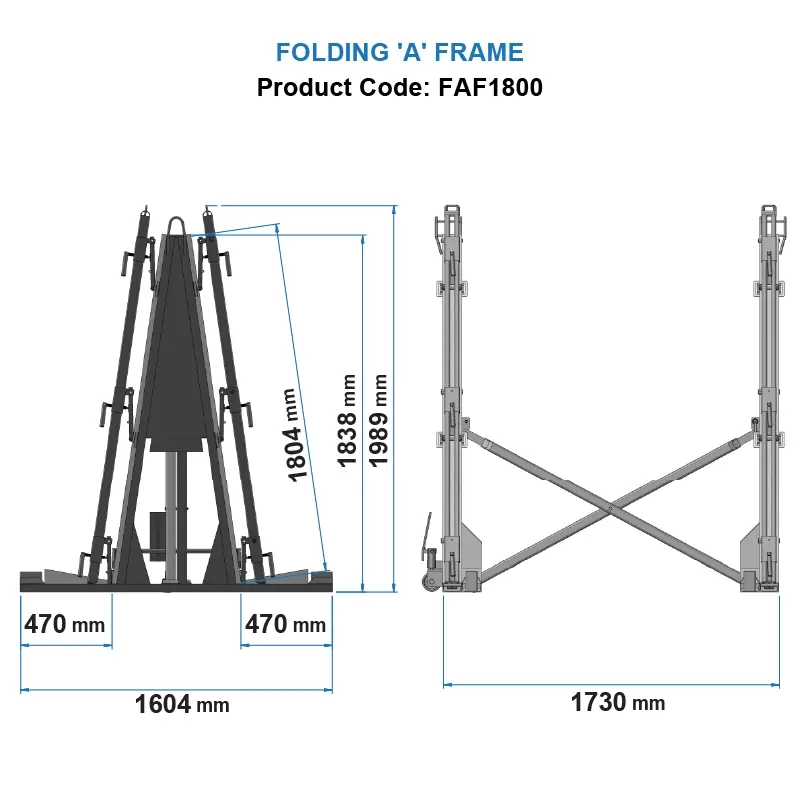

Folding A-Frames FAF1800 (Dimension)

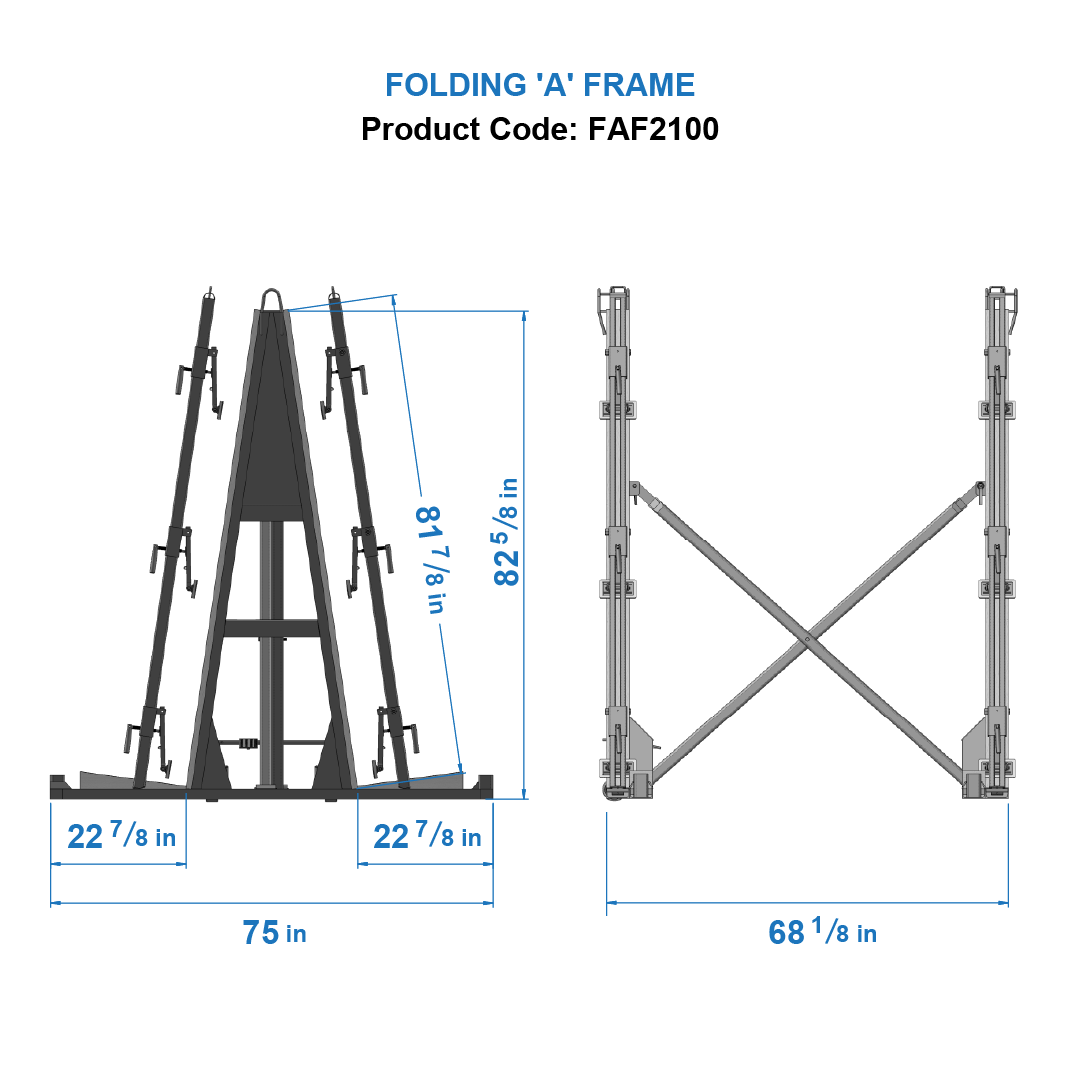

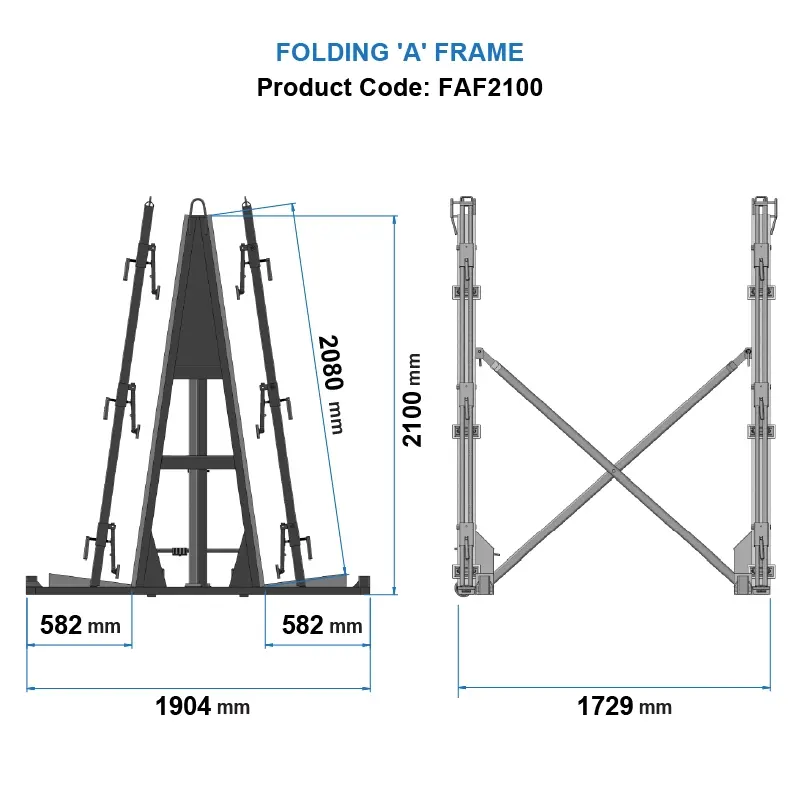

Folding A-Frames FAF2100 (Dimension)
youtube - [Video]
Folding A-Frames

Folding A-Frames

  • Height Option

Folding A-Frames - FAF1600

General

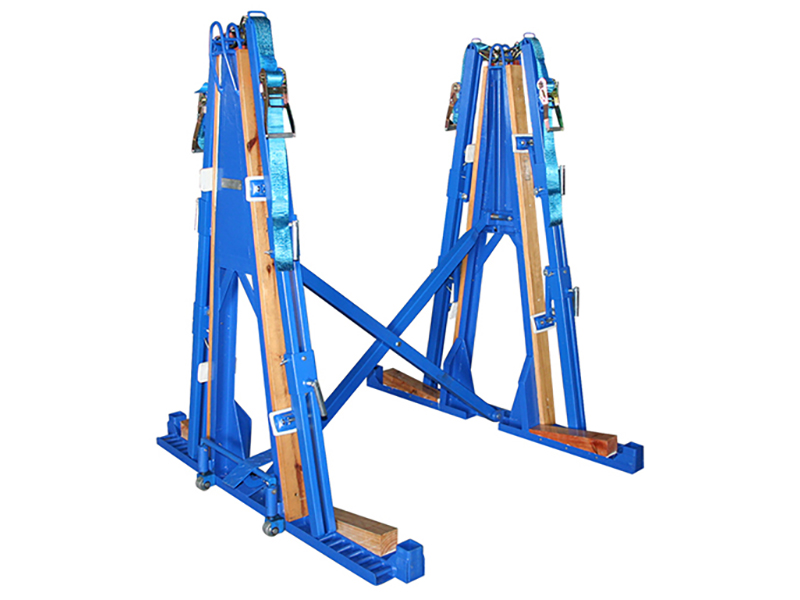

The Aardwolf Folding A-Frame is built to safely transport granite, marble, and other stone slabs. It secures material on both sides using vertical locking bars and ratchet straps.

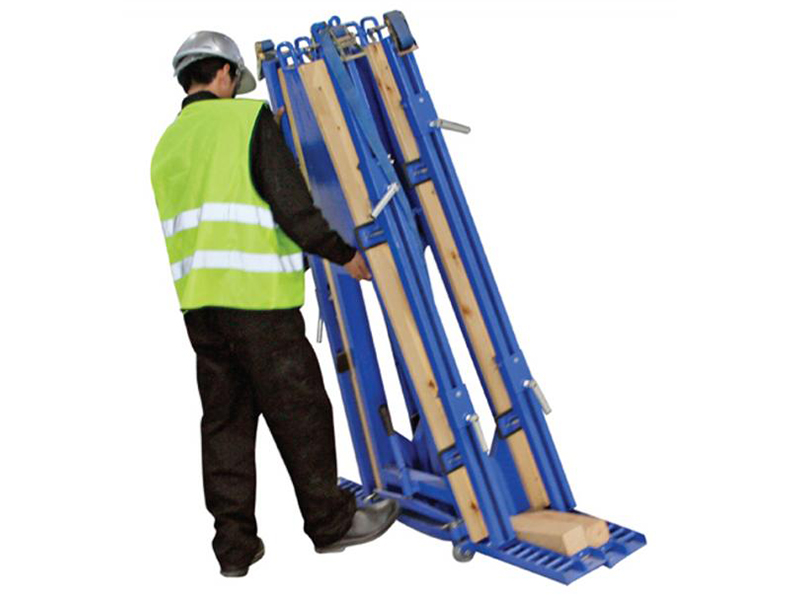

When not in use, the frame folds down quickly by pulling two spring-loaded pins and lowering the wheels with a cam lever. It’s easy to move around the shop or load onto a truck.

Features

  • Bolt holes in the base of the frame for optionally securing the Folding A-Frames to the vehicle.

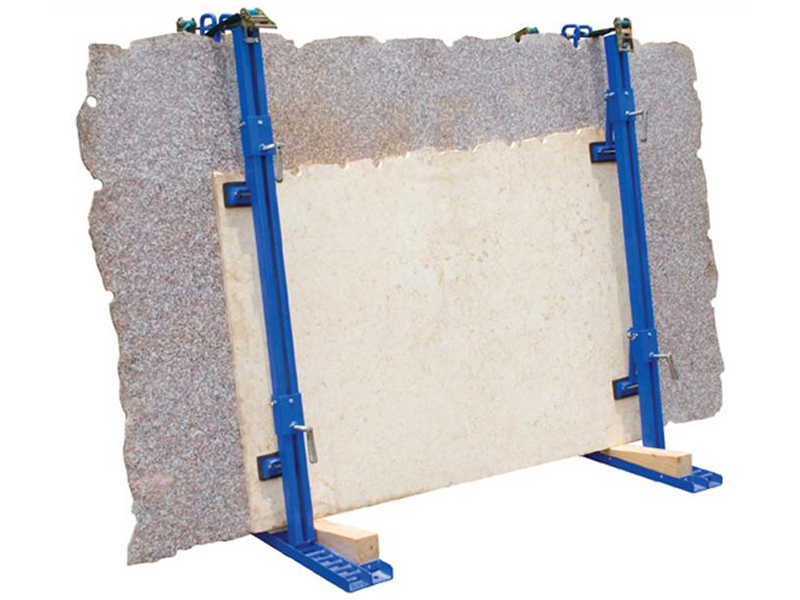

  • Granite is secured by rubber pads mounted on cleats, which are adjustable in height along the vertical locking bars.

  • Large hand-tightened wing nuts tighten the cleats to the vertical locking bars.

  • Powder-coated finish.

Specifications

FAF1600


Metric
Width of slab storage base area on each side386 mm
Working load limit per side3000 kg
Total working load limit6000 kg
Frame height1600 mm
Net weight223 kg
Gross weight235 kg
Packaging dimensionL.1650 x W.500 x H.1870 mm

Folding A-Frames product demonstration video thumbnail - Watch tutorial on YouTube

Folding A-Frames

Watch our comprehensive product demonstration video showing how to use Folding A-Frames. Learn about key features, benefits, and setup instructions.

Watch full tutorial on YouTube
