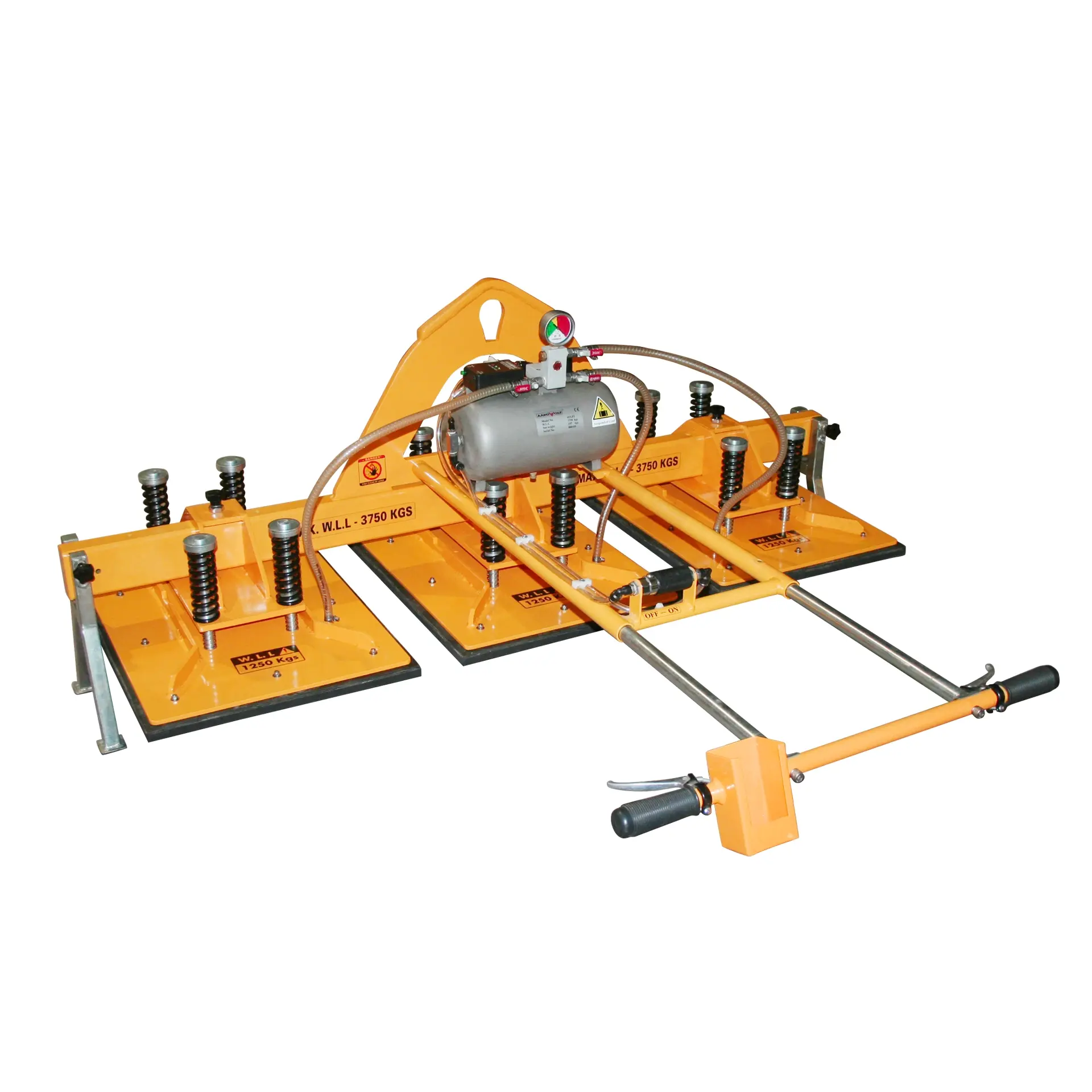

Vacuum Lifter (3750kg)

Vacuum Lifter (3750kg) - AVLP3-3750

General

This vacuum lifter is designed to lift concrete panels. It can also lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift materials. Powered by compressed air.

Features

The stainless steel vacuum tank ensures safe pickup in case of a sudden power break to the pump.
A rechargeable 3.7V battery powers the audio and visual alarm system.
Slider valve with ON/OFF position for the attachment of material to vacuum pads and release of material from vacuum pads.

Specifications

Item	Metric
Number of pads	8 pcs
Pad size	800 × 500 mm
Working load limit	3750 kg
Net weight	220 kg

Battery Information for the lifter:

Item	Specification
Type battery	Lithium-ion
Voltage	12 V
Current	2.0 Ah
Quantity	1
Continuous operation time (with mode-saving pressure)	2 hours
Working time with mode-saving pressure	6 hours
Continuous operation time with mode-saving alarm only	120 hours
Working time with mode-saving alarm only	360 hours

Battery Charger:

Item	Metric
Charger code	GAL 12V-40 Bosch
Input voltage	220–240 VAC
Output voltage	12V
Output current	4.0Ah
Quantity	1
Full charge time	0.5 hour
Weight	460 gram

Compressed air requirement:

Item	Metric
Air consumption	236 liters/minute
Supply air pressure	5.8 bar
