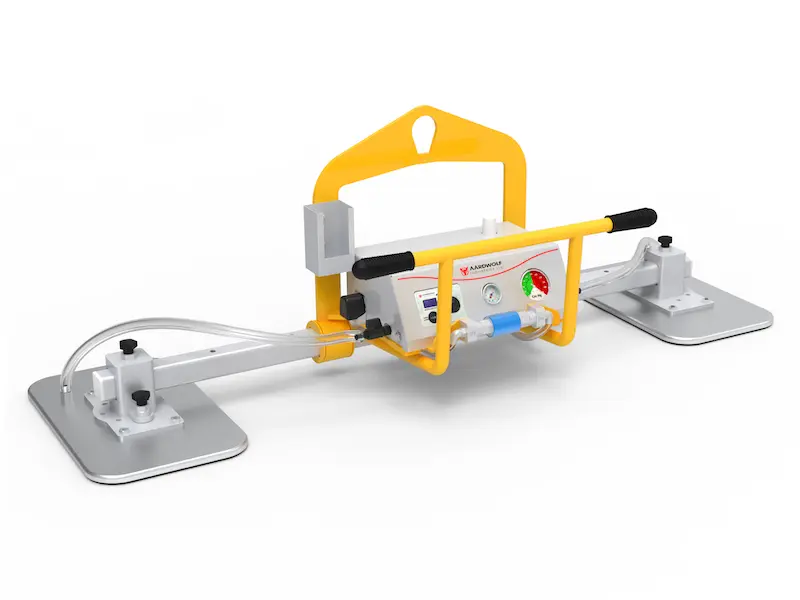

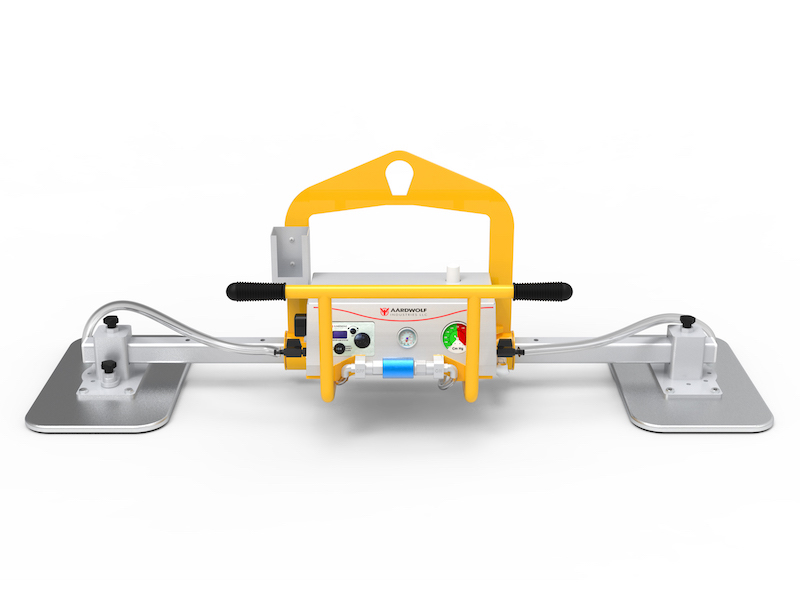

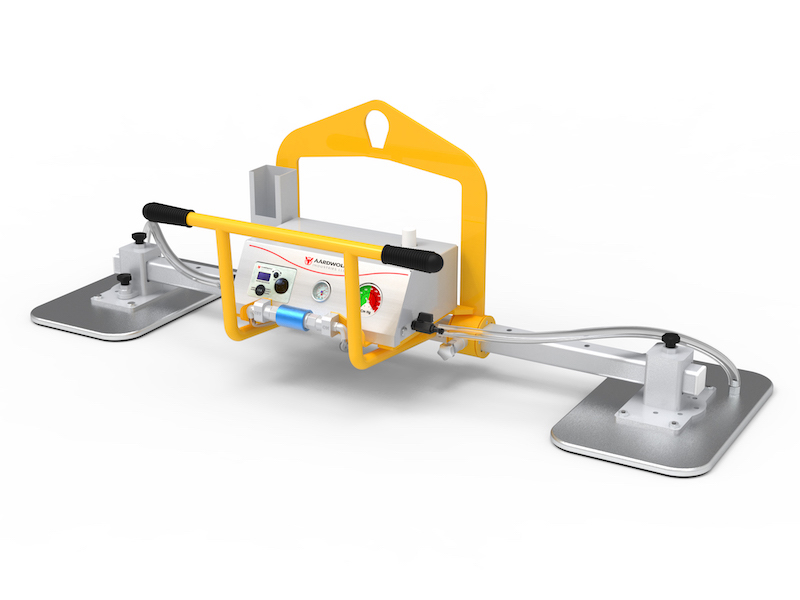

Pneumatic Vacuum Lifter (500kg)

Pneumatic Vacuum Lifter (500kg) - AVLM2-500

General

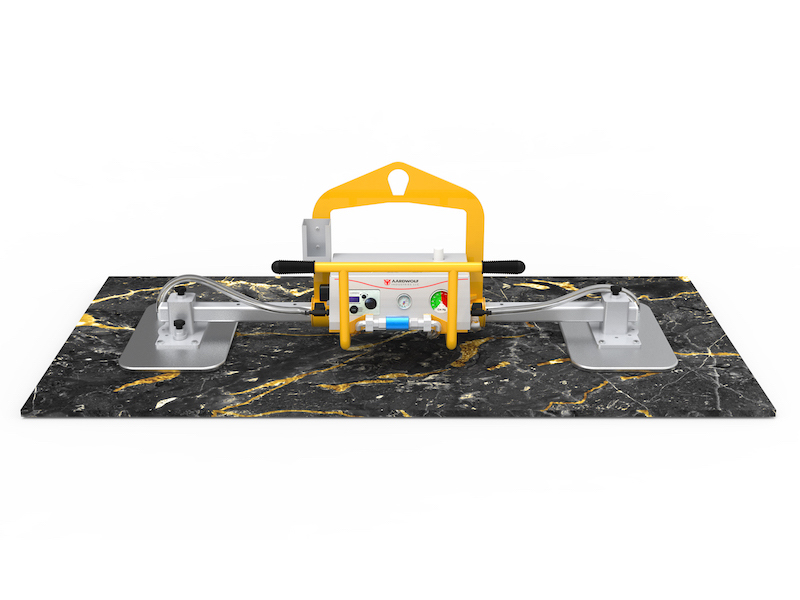

The Aardwolf Vacuum Lifter AVLM2, powered by compressed air, is designed to lift smooth or rough marble, granite limestone, sandstone and concrete slabs. Featuring rugged construction with the ability to lift and tilt materials, this Vacuum Lifter has been perfected by adding an energy saver, which saves energy and reduces the vacuum lifter's noise level.

Features

The metal structure is tilted from 0 to 90° manually.
The vacuum lifter comes standard with rotating pads, allowing the operator to quickly rotate the vacuum pads to 45° and 90°.
Compressed air-operated vacuum pump at a pressure of 5-6 Bars.
Generous size vacuum tank ensures safe pickup in case of a sudden power break to the pump.
A rechargeable battery powers the audio and visual alarm system.
Comes standard with an energy saver.
Slider valve with ON/OFF position for attaching material to vacuum pads and releasing material from vacuum pads.

Specifications

	Metric
Number of pads	2
Pad dimension	500 × 300 mm
Working load limit	500 kg
Net weight	48 kg
Gross weight	86 kg
Packaging dimensions	L.1480 × W.460 × H.820 mm

Battery information for the device:

Code battery	GBA 12V 2.0Ah Bosch
Battery type	Lithium-ION
Voltage	12V
Current	2.0Ah
Quantity	1
Continuous operation time (mode saving pressure)	2 hours
Working time (mode saving pressure)	6 hours
Continuous operation time (audio alarm only)	120 hours
Working time (audio alarm only)	360 hours

Battery charger:

Code battery	GAL 12V-40 Bosch
Input supply voltage	220–240VAC
Output voltage	12V
Output current	4.0Ah
Quantity	1
Full charger time	0.5 hour
Weight	460 gram

Motor information:

Air consumption	180 liters/min
Supply air pressure	5 bars (72 psi)
