360° Rotation - Pillar Mounted Jib Crane - AJCPIL
General

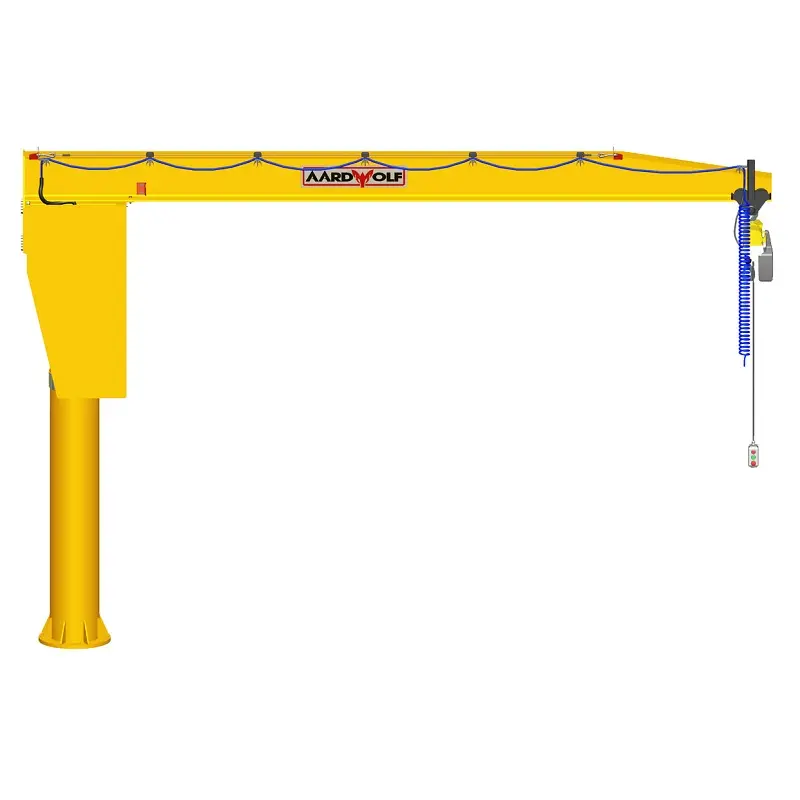

The Aardwolf 360° Rotation - Pillar Mounted Jib Crane is a robust, heavy-duty floor-mounted jib crane designed for long-term performance with minimal maintenance. It features full 360° rotation, enabling versatile load handling in industrial settings. The boom is fabricated from a steel I-beam, supported by a machined lower roller carriage mounted on tension-adjustable bolts. The central mast is constructed from a heavy-duty steel pipe with a reinforced base plate and gussets for stability.
Features
- 360° Rotation: Smooth and full-circle rotation for maximum workspace coverage.
- Heavy-duty Design: Industrial-grade steel I-beam and pipe mast.
- Adjustable Tension Bolts: For boom alignment and rotation adjustment.
- Easy-running Hoist Trolley: For smooth horizontal movement.
- Rubber End Stops: To limit trolley movement and protect end-of-travel areas.

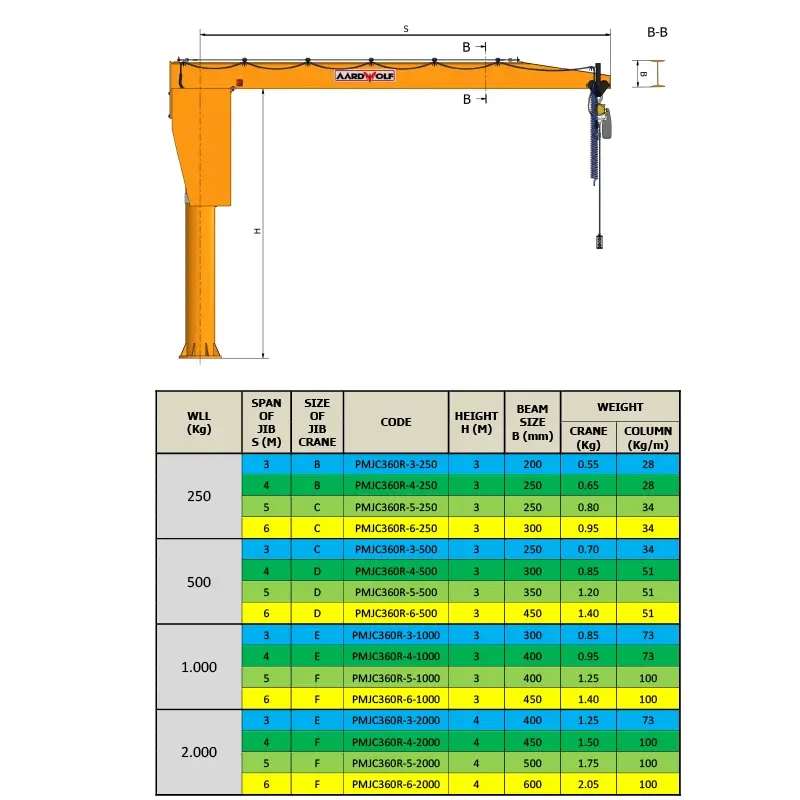

Specifications
| Specification | Metric |
| Maximum span | 7000 mm |
| Working load limit | 1000 kg |
| Net weight | 1660 kg |
| Gross weight | 1700 kg |
| Size – Mast | L.4000 × W.1020 × H.1140 mm |
| Size – Head | L.850 × W.600 × H.1880 mm |
| Size – Boom | L.7400 × W.420 × H.650 mm |
