General
A powerful battery-operated vacuum lifting device for laying marble and granite slabs, concrete and similar. Robust and compact, this Vacuum Block Lifter can be suspended on all types of lifting equipment by means of load hooks, chains, cables, etc.
Strong and compact body with built-in mount for crane hook and the ability to quickly replace the vacuum suction pads.
Features
- Equipped with a battery-operated vacuum pumps.
- ON/OFF slide valve.
- Audio/visual safety system: warning flashlight, vacuum gauge, large vacuum reserve tank.
- The automatic vacuum pumping system.
- Long working hours.
- Battery charge indicator.
- Manually operated valve for vacuum.
Specifications

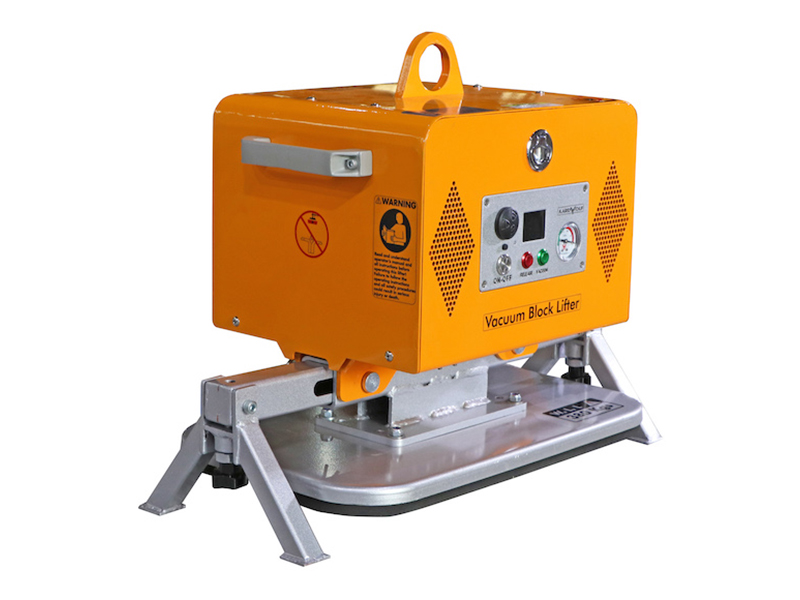

Vacuum Block Lifter AVBL380
Metric | Imperial | |
| Working load limit | 500 x 125 mm: 126 kg 420 x 220 mm: 220 kg 500 x 150 mm: 164 kg 500 x 300 mm: 380 kg | 19 3/4" x 4 7/8": 278 lb 16 1/2" x 8 5/8": 485 lb 19 3/4" x 5 7/8": 362 lb 119 3/4" x 11 3/4": 838 lb |
| Net weight | 39 kg | 86 lb |
| Gross weight | 55 kg | 121 lb |
| Packaging dimensions | L.585 x W.385 x H.530 mm | L.23" x W.15 1/8" x H.20 7/8" |
Comes with alternate size suction pads when lifting smaller pieces. (Custom dimension vacuum plates made on request)
Powered by a clip-in 24V battery with energy-saving system allows you to work without recharging throughout the day. Clip-in battery can be replaced in a matter of seconds.

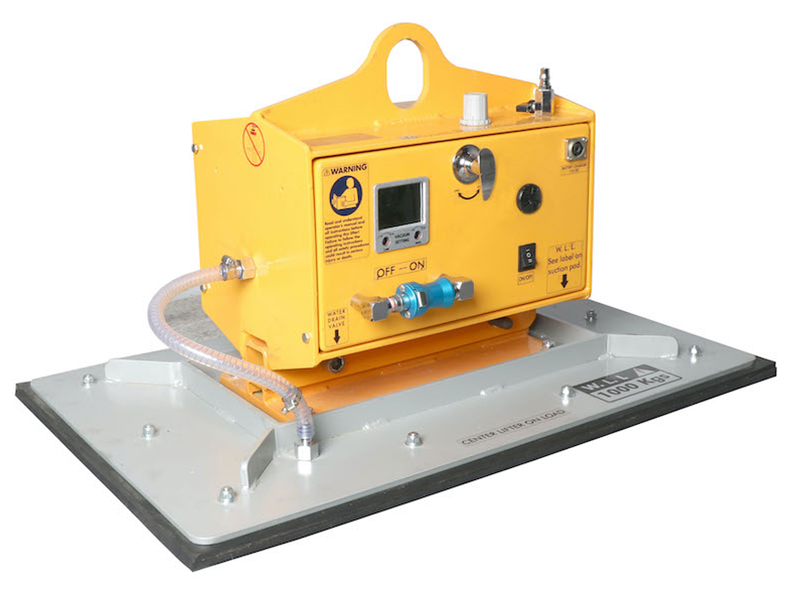

Vacuum Block Lifter AVBL1000
Metric | Imperial | |
| Pad sizes | 800 x 500 mm | 31 1/2" x 19 3/4" |
| Working load limit | 1000 kg | 2204 lb |
| Net weight | 95 kg | 209 lb |
| Gross weight | 116 kg | 256 lb |
| Packaging dimensions | L.870 x W.570 x H.635 mm | L.34 1/4" x W.22 1/2" x H.25" |
Equipped with 2 battery-operated vacuum pumps. The operator has the choice of switching on 1 pump or switching on 2 pumps, depending on the porosity of the load.
| Weight Load Limit Options | Vacuum Block Lifter AVBL380 (380kg / 838lb) or Vacuum Block Lifter AVBL1000 (1000kg / 2204lb) |
| Power Source | Battery |
| Material Surface | Rough & Smooth |
