Powered Counterbalance Crane with lateral movement APCCL

  • Weight Load Limit
  • Product Weight
  • Power Source

This combination does not exist.

Log In to see price


Product code: APCCL


General

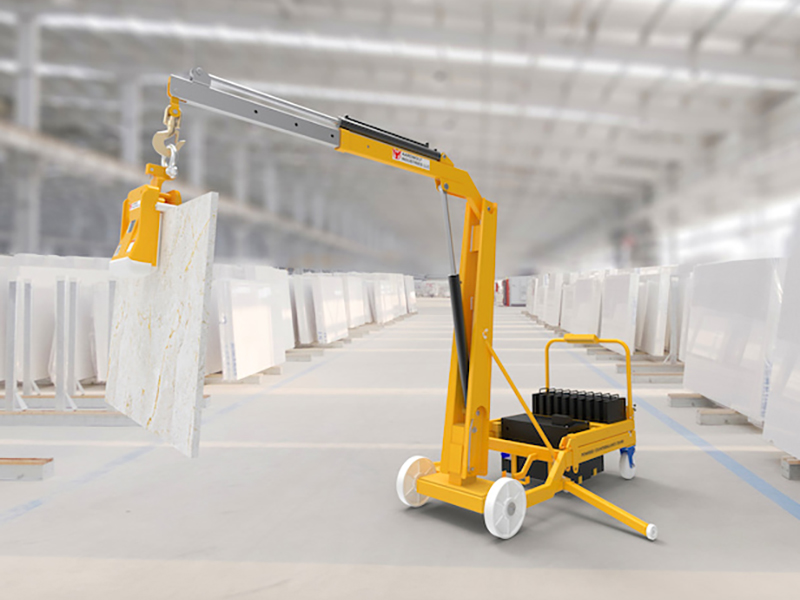

The Powered Counterbalance Crane with Lateral Movement has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. The boom is raised via a 12V battery-powered hydraulic pump. The boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to manoeuver and allows the crane to reach tight, hard to reach areas.

Fitted with hard-wearing, high-capacity nylon front wheels, this device can pick and carry loads and be pushed on a flat surface to transport materials on solid paved surfaces.


Features


  • + Extra hydraulic cylinder for lateral movement of the front axil. An integral          counterweight.

  • + An easy to operate hydraulically lifted extending boom.

  • + Folds down for easy transportation.

Specifications

APCCL
Metric
(mm-kg)
Imperial
(inch-lb)
Extended
Length: 1700
Height: 2760
66.9''
108.6''
Packaging dimensions1860 x 970 x 118073.2'' x 38.2'' x 46.5''

  • Battery information for the device:

Power supply12V 150A battery
Charging requirements12V 20A
Charging time7.5 hours
Non-stop working time2.1 hours
6-month warranty-

  • Motor information:

Motor12V 1.6KW 2500rpm
Pump1.6cc/rev
Tank8 liters

Specifications for Powered Counterbalance Crane with lateral movement APCCL

Weight Load Limit 540 kg | 1,190 lbs
Product Weight 830 kg |1,830 lbs
Power Source Battery
