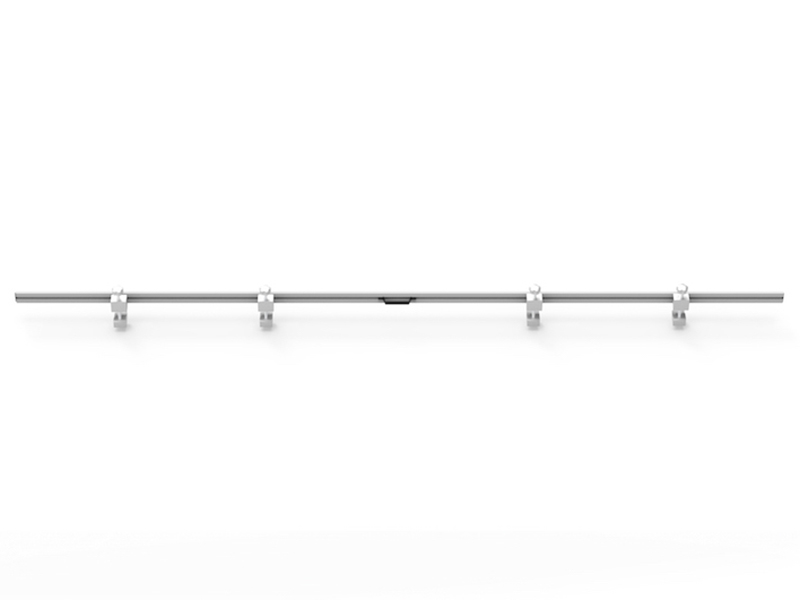

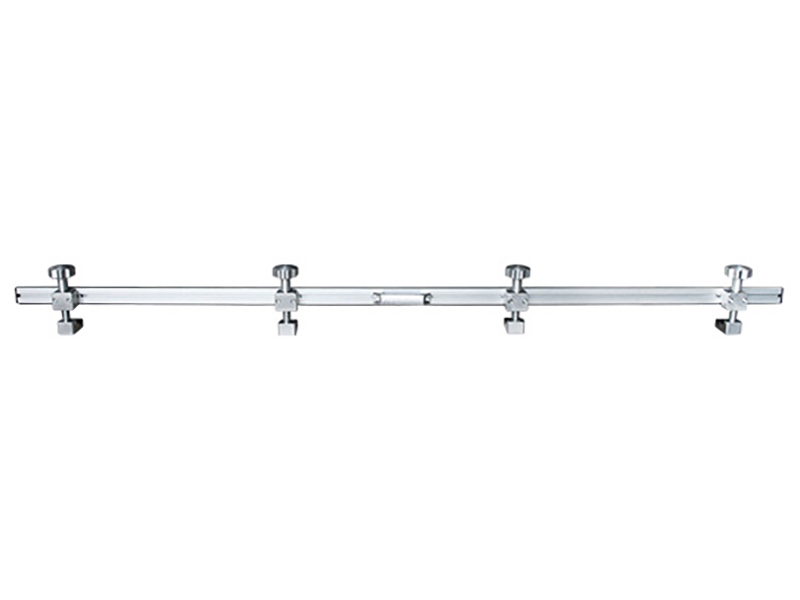

Anti-Breakage Bars CTTABB
Product code: CTTABB4-CTTABB6-CTTABB8
Minimum Grip: 17 mm | 0.7"
Maximum Grip: 45 mm | 1.8"
General

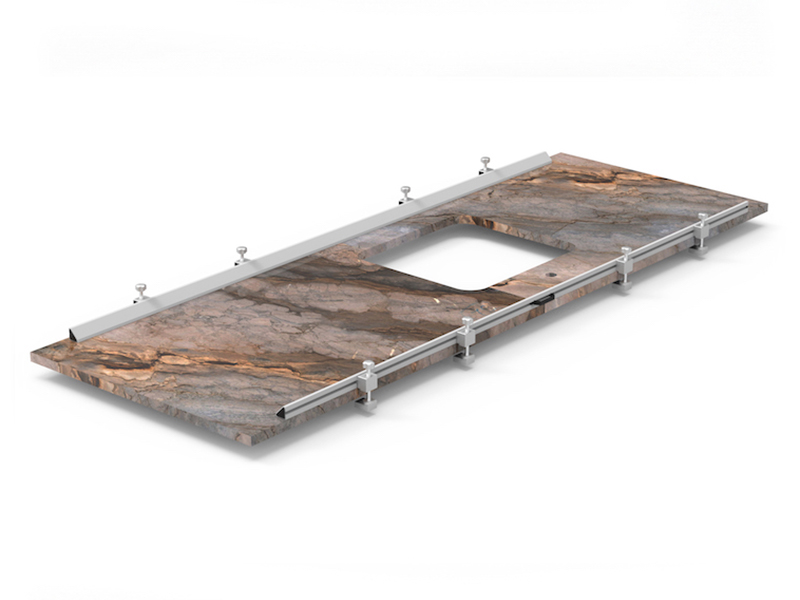

Anti-Breakage Bars are stiffening bars that prevent the breakage of fragile stone pieces during lifting, moving and installation. Quick and easy to attach to workpieces, the rubber-lined bars eliminate the risk and danger of breaking expensive marble and granite workpieces.
Features
The Aardwolf Anti-Breakage Bars incorporate rubber lined bar and rubber-lined individual jaws to cushion and protect the granite or marble workpiece against hard point compression so that the load is well distributed with minimal pressure points, preventing any scratching or cracks to the workpiece.
Aardwolf Anti-Breakage Bars have full-grip hand knobs, which are easy to grab using bare hands or gloves. Full-grip hand knobs have more substantial rotation torque than comparable mushroom knobs.
The bottom jaws of the Aardwolf Anti-Breakage Bars are connected by a rod attached to the bottom jaws and slidably extend through the upper jaws. The upper jaws are prevented from completely separating from the rods through keyways and keys, which also prevent the jaws from twisting about each other. The keyways and keys illuminate the need for auxiliary rods (jaw alignment pin). As with a competing product, the keyway prevents the bottom jaws from dropping to the floor if a worker completely loosens the hand knobs.
Made from extruded anodised aluminium, stainless steel and zinc-plated steel.
Sold in pairs.
Specifications
Anti-Breakage Bar 4' (1220mm) CTTABB4
Metric | Imperial | |
| Grip range | 17 - 45 mm | 0.7" - 1.8" |
| Length | 1220 mm | 48" |
| Net weight | 8.4 kg | 19 lb |
| Gross weight | 9 kg | 20 lb |
| Packaging dimensions | L.1260xW.180xH.140 mm | L.49.6"xW.7.1"xH.5.5" |
Anti-Breakage Bar 6' (1830mm) CTTABB6
Metric | Imperial | |
| Grip range | 17 - 45 mm | 0.7" - 1.8" |
| Length | 1830 mm | 72" |
| Net weight | 12 kg | 26 lb |
| Gross weight | 13 kg | 29 lb |
| Packaging dimensions | L.1870xW.180xH.140 mm | L.73.6"xW.7.1"xH.5.5" |
Anti-Breakage Bar 8' (2440mm) CTTABB8
Metric | Imperial | |
| Grip range | 17 - 45 mm | 0.7" - 1.8" |
| Length | 2440 mm | 96" |
| Net weight | 14 kg | 31 lb |
| Gross weight | 15 kg | 33 lb |
| Packaging dimensions | L.2480xW.180xH.140 mm | L.97.6"xW.7.1"xH.5.5" |
| Minimum Grip | 17 mm | 0.7" |
| Maximum Grip | 45 mm | 1.8" |
| Length Option | 1220 mm | 4' or 1830 mm | 6' or 2440 mm | 8' |
