General
The Aardwolf transport racks are used for internal or external transport of sheet material. The 'A" Frames have the ability to transport, store, and preserve materials perfectly. These products are safely used not only within the factory or on large worksites, but also in trucks from place to place with a special structure that prevents glass materials from tilting or falling.
Features
- + Sturdy and safe structure, designed to eliminate any risk of the slab tipping over.
- + Covered with a special rubber layer to prevent scratches.

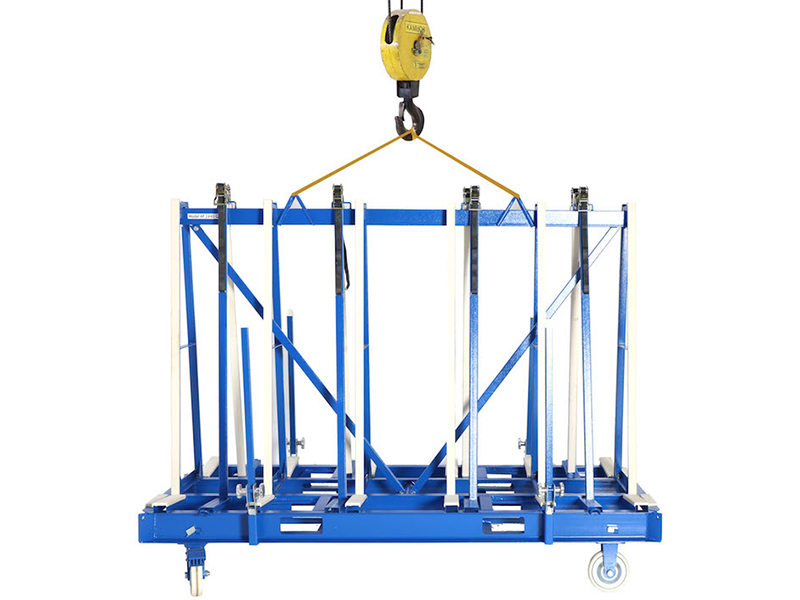

- + Two hooking points to connect to an overhead crane.
- + Handlebars to increase the ability to transport.
- + Wheels with brake pins to ensure safety in operation.
- + Four locking bars per frame mounted in slotted holes on the bottom.
- + Powder-coated finish ensures an aesthetic feature as well as the durability of the product.
Option: Frames can be hot galvanized finished upon request.

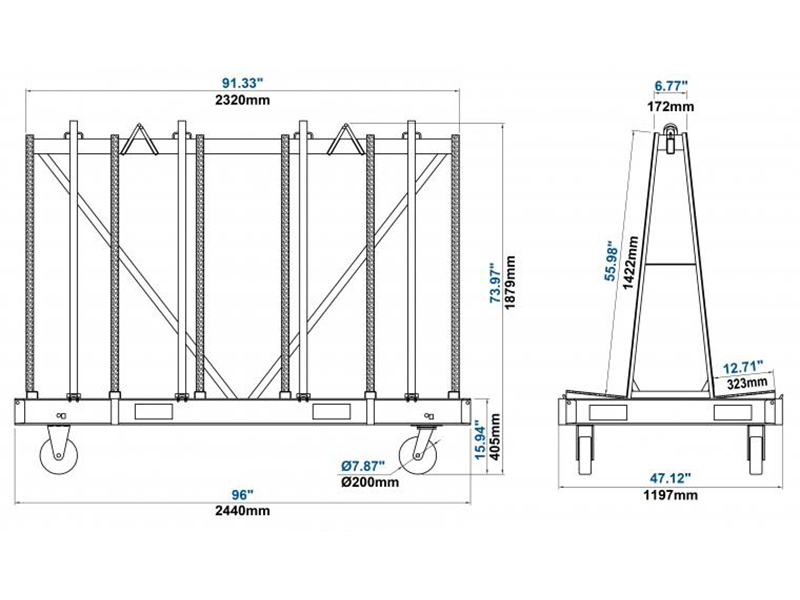

Specifications
| AF2440QP | Metric (mm-kg) | Imperial (inch-lb) |
| Width of slab storage base area on each side | 323 | 12.7" |
| Gross weight | 278 | 613 |
| Packaging dimensions | 2450x1240x360 | 96.5" x 48.8" x 14.2" |
Specifications for 'A' Frame 2440QP
| Weight Load Limit | 3,000 kg | 6,614 lbs |
| Length | 2,440 mm | 8'0" |
| Product Weight | 272 kg | 600 lbs |
